Attributes
| Key ^ | Value |
|---|---|
| ANSI Code | TNMG332-MS3 WSM01 |
| ANSI Number, Insert Code | TNMG332 |
| Cast Iron (K) Compatibility, Hardened (H) Compatibility, Non Ferrous (N) Compatibility | No |
| Chip-Breaker Code | MS3 |
| Chip-Breaker, Stainless (M) Compatibility, Steel (P) Compatibility, Super Alloy (S) Compatibility | Yes |
| Clearance Angle | 0 Degrees |
| Coating, Coating Process | CVD |
| Corner Radius | 0.8 mm |
| Country of Origin (subject to change) | Germany |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 16.5 mm |
| Depth of Cut | 0.80 mm to 3.00 mm |
| Finish - Machining | TiAlN |
| For Use With | Toolholders, Boring Bars |
| Grade, Manufacturer Grade | WSM01 |
| Included Angle | 60 Degrees |
| Inscribed Circle | 3/8 in |
| Insert Application | Medium |
| Insert Holding Type | Straight Hole |
| Insert Material, Material, Material - Machining | Carbide |
| Insert Shape, Shape | Triangle |
| Insert Size | 332 |
| Insert Style | TNMG |
| Insert Thickness | 0.1880" |
| ISO Number | TNMG160408-MS3 WSM01 |

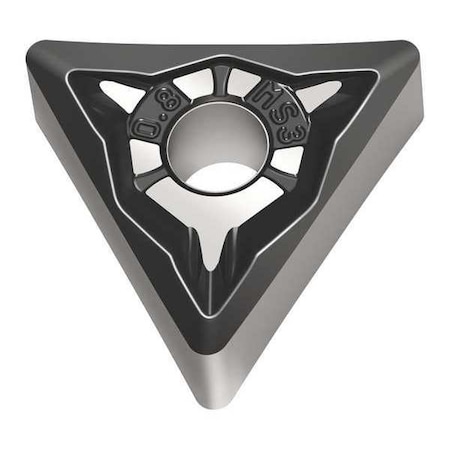

| Item | Triangle Turning Insert |
| Measurement System | Metric |
| Mounting Hole Dia. | 0.150" |
| Mounting Style | Clamp |
| No. of Edges, Number of Cutting Edges, Thickness | 3 |
| Nose Radius | 0.0310" |
| Primary Material Application | Nickel, Stainless Steel, Titanium |
| Primary Material Application ISO Code | M, S |
| Rake | Negative |
| Relief Angle | 0 Degrees |
| Through Hole Inside Dia. | 3.81 mm |
| Workpiece Compatibility | Stainless (M), Steel (P), Super Alloy (S) |
