Attributes
| Key | Value |
|---|---|
| ANSI Code | TPGT2(1.5)2-MM4 WSM20S |
| ANSI Number | TPGT2(1.5)1 |
| Cast Iron (K) Compatibility | No |
| Chip-Breaker | Yes |
| Chip-Breaker Code | MM4 |
| Clearance Angle | 11 Degrees |
| Coating | PVD |
| Coating Process | PVD |
| Corner Radius | 0.8 mm |
| Country of Origin (subject to change) | Germany |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 11 mm |
| Depth of Cut | 0.50 mm to 2.00 mm |
| Finish - Machining | TiAlN+Al2O3+Al |
| For Use With | Toolholders, Boring Bars |
| Grade | WSM20S |
| Hardened (H) Compatibility | No |
| Included Angle | 60 Degrees |
| Inscribed Circle | 2 |
| Insert Application | Medium |
| Insert Code | TPGT21.52 |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Insert Material | Carbide |
| Insert Shape | Triangle |
| Insert Size | 21.52 |
| Insert Style | TPGT |
| Insert Thickness | 0.0940" |
| ISO Number | TPGT110208-MM4 WSM20S |

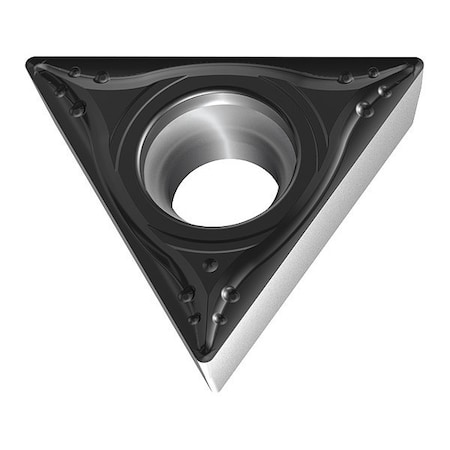

| Item | Triangle Turning Insert |
| Manufacturer Grade | WSM20S |
| Material | Carbide |
| Material - Machining | Carbide |
| Measurement System | Metric |
| Mounting Hole Dia. | 0.110" |
| Mounting Style | Screw |
| No. of Edges | 2 |
| Non Ferrous (N) Compatibility | No |
| Nose Radius | 0.0310" |
| Primary Material Application | Nickel, Stainless Steel, Titanium |
| Primary Material Application ISO Code | M, S |
| Rake | Positive |
| Relief Angle | 11 Degrees |
| Secondary Material Application | Steel |
| Secondary Material Application ISO Code | P |
| Shape | Triangle |
| Stainless (M) Compatibility | Yes |
| Steel (P) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| Thickness | 1.5 |
| Through Hole Inside Dia. | 2.8 mm |
| Workpiece Compatibility | Stainless (M), Steel (P), Super Alloy (S) |
