Walter Tools VBGT110302-PF5 WPP20

B017BJ7JNI

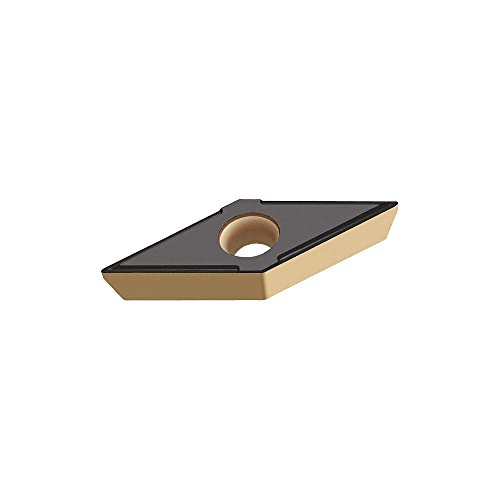

Walter Tools VBGT110302-PF5 WPP20 Carbide Tiger-Tec Positive Indexable Turning Insert, 0.008" Corner Radius, 1/4" IC, 1/8" Thick, 0.004" - 0.024" Depth of Cut (Pack of 10)

Walter Tools VBGT110302-PF5 WPP20 Carbide Tiger-Tec Positive Indexable Turning Insert, 0.008" Corner Radius, 1/4" IC, 1/8" Thick, 0.004" - 0.024" Depth of Cut (Pack of 10)zoom

Attributes

Key Value
ANSI CodeVBGT2(2)0.5-PF5 WPP20
ANSI NumberVBGT221
Cast Iron (K) Compatibi.Yes
Chip-BreakerYes
Chip-Breaker CodePF5
Clearance Angle5 Degrees
CoatingCVD
Corner Radius.5
Country of Origin (subj.Germany
Cutting ApplicationTurning
Cutting DirectionNeutral
Cutting Edge Length11.07mm
Finish - MachiningTiCN+Al2O3+TiN
For Use WithToolholders, Boring Bars
GradeWPP20
Hardened (H) Compatibil.No
Included Angle35 Degrees
Inscribed Circle2
Insert ApplicationFinishing
Insert CodeVBGT22.5
Insert Holding Type40 Degrees to 60 Degre.
Insert MaterialCarbide
Insert ShapeDiamond
Insert Size220.5
Insert StyleVBGT
Insert Thickness0.1250"
ISO NumberVBGT110302-PF5 WPP20
ItemDiamond Turning Insert
Manufacturer GradeWPP20
MaterialCarbide
Material - MachiningCarbide
Measurement SystemFractional Inch
Mounting Hole Dia.0.110"
Mounting StyleScrew
No. of Edges2
Non Ferrous (N) Compati.No
Nose Radius0.0080"
Number of Cutting Edges2
Primary Material Applic.Steel
Primary Material Applic.P
RakePositive
Relief Angle5 Degrees
ShapeRhombic
Stainless (M) Compatibi.No
Steel (P) CompatibilityYes
Super Alloy (S) Compati.No
Thickness2
Workpiece CompatibilityCast Iron (K), Steel (P)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG792651521.01010Walter Valenite0.0721.0 @ 10
