Attributes
| Key ^ | Value |
|---|---|
| ANSI Code, ANSI Number | VCGT331-FN2 WNN10 |
| Cast Iron (K) Compatibility, Hardened (H) Compatibility | No |
| Chip-Breaker Code | FN2 |
| Chip-Breaker, Non Ferrous (N) Compatibility, Stainless (M) Compatibility, Steel (P) Compatibility, Super Alloy (S) Compatibility | Yes |
| Clearance Angle | 7 Degrees |
| Coating | Uncoated |
| Corner Radius | 1 |
| Country of Origin (subject to change) | Germany |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 16.00mm |
| Depth of Cut | 0.20 to 2.50mm |
| Finish - Machining | TiAlN |
| For Use With | Toolholders, Boring Bars |
| Grade, Manufacturer Grade | WNN10 |
| Included Angle | 35 Degrees |
| Inscribed Circle, Thickness | 3 |
| Insert Application | Finishing |
| Insert Code | VCGT331 |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Insert Material, Material, Material - Machining | Carbide |
| Insert Shape | Diamond |
| Insert Size | 331 |
| Insert Style | VCGT |
| Insert Thickness | 0.1880" |
| ISO Number | VCGT160404-FN2 WNN10 |

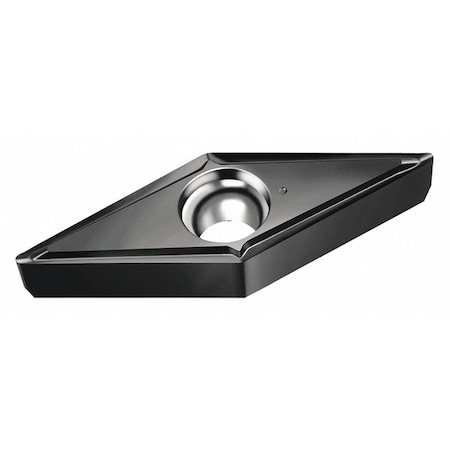

| Item | Diamond Turning Insert |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.173" |
| Mounting Style | Screw |
| No. of Edges, Number of Cutting Edges | 2 |
| Nose Radius | 0.016" |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Magnesium |
| Primary Material Application ISO Code | N |
| Rake | Positive |
| Relief Angle | 7 Degrees |
| Shape | Rhombic |
| Workpiece Compatibility | Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S) |
