Attributes
| Key | Value |
|---|---|
| ANSI Code | WNMG333-MM5 WSM30S |
| ANSI Number | WNMG333-MM5 WSM30S |
| Cast Iron (K) Compatibility | No |
| Chip-Breaker | Yes |
| Chip-Breaker Code | MM5 |
| Clearance Angle | 0 Degrees |
| Coating | PVD |
| Coating Process | PVD |
| Corner Radius | 1.20mm |
| Country of Origin (subject to change) | Germany |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 6.52mm |
| Depth of Cut | 0.80 to 3.00mm |
| Finish - Machining | TiAlN+Al2O3+Al |
| For Use With | Toolholders, Boring Bars |
| Grade | WSM30S |
| Hardened (H) Compatibility | No |
| Included Angle | 80 Degrees |
| Inscribed Circle | 3/8 in |
| Insert Application | Medium |
| Insert Code | WNMG333 |
| Insert Holding Type | Straight Hole |
| Insert Material | Carbide |
| Insert Shape | Trigon |
| Insert Size | 333 |
| Insert Style | WNMG |
| Insert Thickness | 0.1880" |
| ISO Number | WNMG060412-MM5 WSM30S |

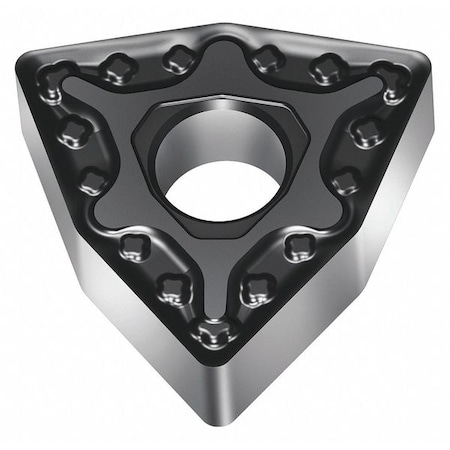

| Item | Turning Insert |
| Manufacturer Grade | WSM30S |
| Material | Carbide |
| Material - Machining | Carbide |
| Measurement System | Metric |
| Mounting Hole Dia. | 0.150" |
| Mounting Style | Clamp |
| No. of Edges | 6 |
| Non Ferrous (N) Compatibility | No |
| Nose Radius | 0.047" |
| Number of Cutting Edges | 6 |
| Primary Material Application | Nickel, Stainless Steel, Titanium |
| Primary Material Application ISO Code | M, S |
| Rake | Negative |
| Relief Angle | 0 Degrees |
| Secondary Material Application | Steel |
| Secondary Material Application ISO Code | P |
| Shape | Trigon |
| Stainless (M) Compatibility | Yes |
| Steel (P) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| Thickness | 3 |
| Through Hole Inside Dia. | 3.81mm |
| Workpiece Compatibility | Stainless (M), Steel (P), Super Alloy (S) |
