Walter Tools WNMG080404-MP5 WPP10S

B00RXY0GJQ

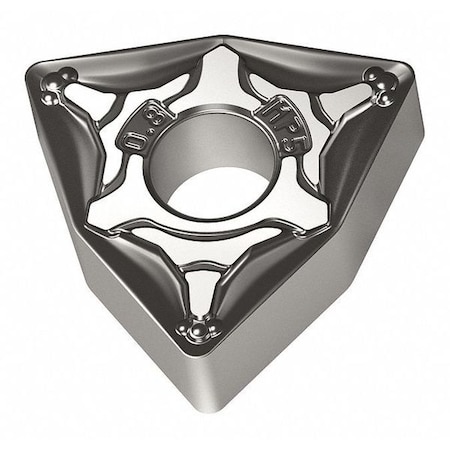

Walter Tools WNMG080404-MP5 WPP10S Carbide Tiger-Tec Negative Indexable Turning Insert, 0.016" Corner Radius, 0.500" IC, 0.187" Thick, 0.020" - 0.157" Depth of Cut (Pack of 10)

Walter Tools WNMG080404-MP5 WPP10S Carbide Tiger-Tec Negative Indexable Turning Insert, 0.016" Corner Radius, 0.500" IC, 0.187" Thick, 0.020" - 0.157" Depth of Cut (Pack of 10)zoom

Attributes

Key Value
ANSI CodeWNMG431-MP5 WPP10S
ANSI NumberWNMG434
Cast Iron (K) Compatibi.Yes
Chip-BreakerYes
Chip-Breaker CodeMP5
Clearance Angle0 Degrees
CoatingCVD
Coating ProcessCVD
Corner Radius0.40mm
Country of Origin (subj.Germany
Cutting ApplicationTurning
Cutting DirectionNeutral
Cutting Edge Length8.70mm
Depth of Cut0.50 to 4.00mm
Finish - MachiningTiCN+Al2O3+TiCN
For Use WithToolholders, Boring Bars
GradeWPP10S
Hardened (H) Compatibil.No
Included Angle80 Degrees
Inscribed Circle1/2 in
Insert ApplicationMedium
Insert CodeWNMG431
Insert Holding TypeStraight Hole
Insert MaterialCarbide
Insert ShapeTrigon
Insert Size431
Insert StyleWNMG
Insert Thickness0.1880"
ISO NumberWNMG080404-MP5 WPP10S
ItemTurning Insert
Manufacturer GradeWPP10S
MaterialCarbide
Material - MachiningCarbide
Measurement SystemMetric
Mounting Hole Dia.0.203"
Mounting StyleClamp
No. of Edges2
Non Ferrous (N) Compati.No
Nose Radius0.0160"
Primary Material Applic.Steel
Primary Material Applic.P
RakeNegative
Relief Angle0 Degrees
Secondary Material Appl.Cast Iron
Secondary Material Appl.K
ShapeTrigon
Stainless (M) Compatibi.No
Steel (P) CompatibilityYes
Super Alloy (S) Compati.No
Thickness3
Through Hole Inside Dia.5.16mm
Workpiece CompatibilityCast Iron (K), Steel (P)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG793108015.071010Walter Valenite0.215.07 @ 10
