Attributes
| Key ^ | Value |
|---|---|
| ANSI Code, ANSI Number | WNMG432-NF WSM20S |
| Cast Iron (K) Compatibility, Hardened (H) Compatibility, Non Ferrous (N) Compatibility | No |
| Chip-Breaker Code | NF |
| Chip-Breaker, Stainless (M) Compatibility, Steel (P) Compatibility, Super Alloy (S) Compatibility, Wiper Insert | Yes |
| Clearance Angle | 0 Degrees |
| Coating, Coating Process | PVD |
| Corner Radius | 0.80mm |
| Country of Origin (subject to change) | Germany |
| Cutting Application | Finishing, Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 8.70mm |
| Depth of Cut | 0.50 to 3.00mm |
| Feed Type | High |
| Finish - Machining | TiAlN+Al2O3+Al |
| For Use With | Toolholders, Boring Bars |
| Grade, Manufacturer Grade | WSM20S |
| Included Angle | 80 Degrees |
| Inscribed Circle | 1/2 in |
| Insert Application | Finishing |
| Insert Holding Type | Straight Hole |
| Insert Material, Material - Machining | Carbide |
| Insert Shape, Shape | Trigon |
| Insert Size | 432 |
| Insert Style | WNMG |
| Insert Thickness | 0.1880" |
| ISO Number | WNMG080408-NF WSM20S |

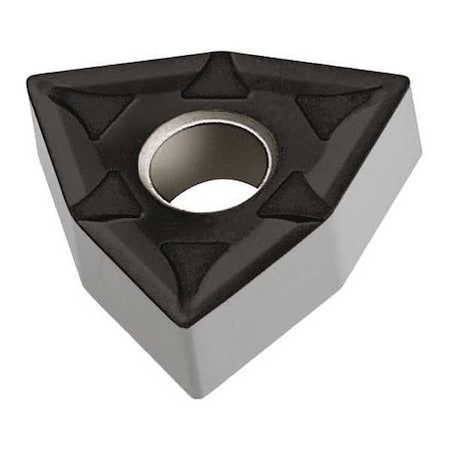

| Item | Turning Insert |
| Measurement System | Metric |
| Mounting Hole Dia. | 0.203" |
| Mounting Style | Clamp |
| No. of Edges, Number of Cutting Edges | 6 |
| Nose Radius | 0.031" |
| Primary Material Application | Nickel, Stainless Steel, Titanium |
| Primary Material Application ISO Code | M, S |
| Rake | Negative |
| Relief Angle | 0 Degrees |
| Secondary Material Application | Steel |
| Secondary Material Application ISO Code | P |
| Thickness | 4.76mm |
| Through Hole Inside Dia. | 5.16mm |
| Workpiece Compatibility | Stainless (M), Steel (P), Super Alloy (S) |
