Description:

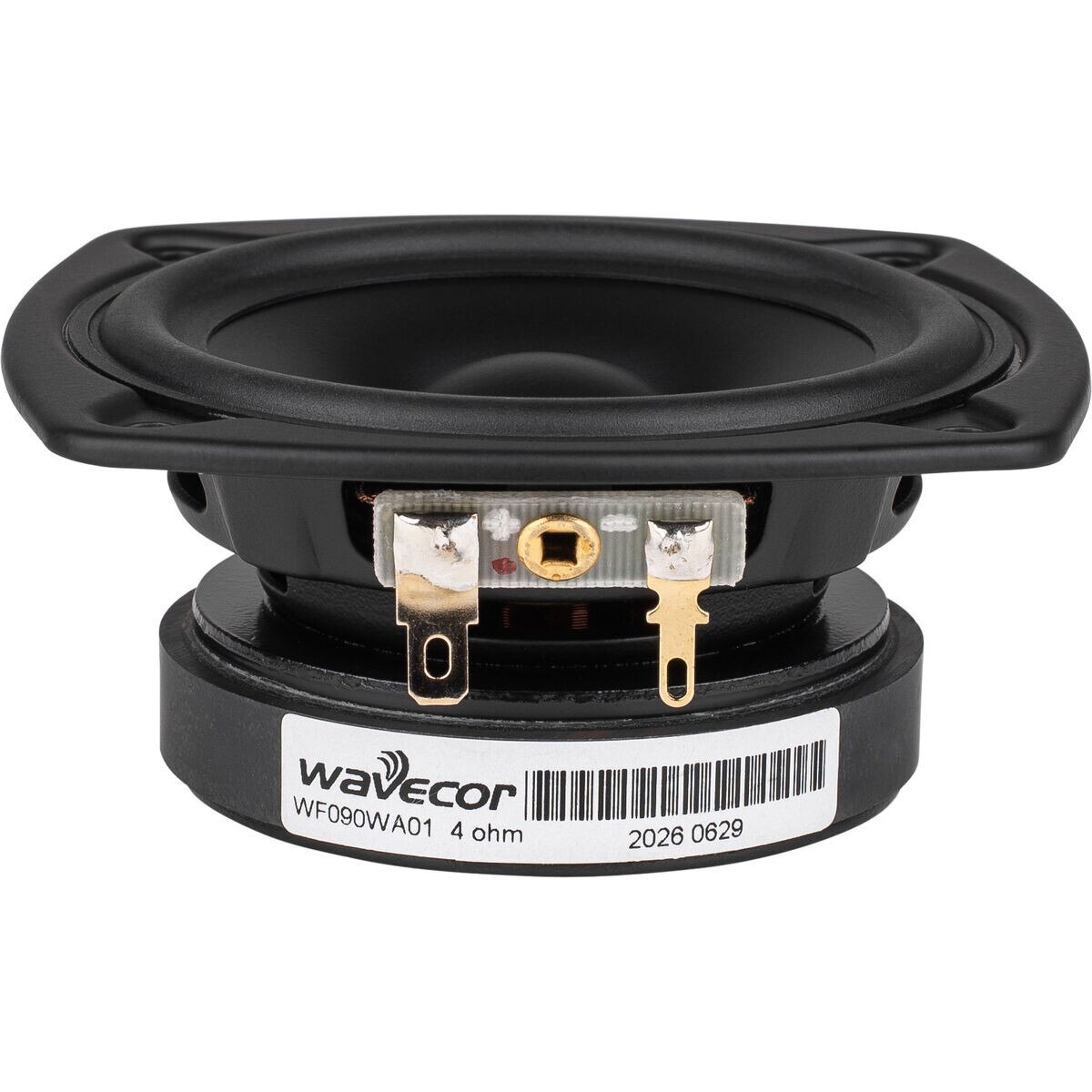

Wavecor WF090WA01 3-1/2" Paper Cone Mid-Woofer 4 Ohm. Part Number: 298-1128 by Wavecor.
Attributes
| Key | Value |
|---|---|
| # Mounting Holes | 4 |
| Baffle Cutout Diameter | 2.99" |
| BL Product (BL) | 2.9T?m |
| Brand | Wavecor |
| Compliance Equivalent Volume (Vas) | 0.04ft? |
| Cone Material | Paper |
| DC Resistance (Re) | 3.1? |
| Depth | 1.54" |
| Diaphragm Mass Inc. Airload (Mms) | 3.45g |
| Electromagnetic Q (Qes) | 0.87 |
| Frequency Response | 120 to 20,000Hz |
| Impedance | 4? |
| Magnet Material | Ferrite |
| Maximum Linear Excursion (Xmax) | 2.75mm |
| Mechanical Compliance of Suspension (Cms) | 0.62mm/N |
| Mechanical Q (Qms) | 6.1 |
| Model | WF090WA01 |
| Nominal Diameter | 3-1/2" |
| Overall Outside Diameter | 3.54" |
| Part Number | 298-1128 |
| Power Handling (MAX) | 30 Watts |
| Power Handling (RMS) | 15 Watts |
| Resonant Frequency (Fs) | 109Hz |
| Sealed F3 | 122.8Hz |
| Sealed Volume | 0.05ft? |
| Sensitivity | 86.5dB 2.83V/1m |
| Surface Area of Cone (Sd) | 36cm? |
| Total Q (Qts) | 0.76 |
| Unit of Measure | Each |
| UPC | 848864054650 |
| Vented F3 | 89.2Hz |
| Vented Volume | 0.05ft? |
| Voice Coil Diameter | 0.87" |
| Voice Coil Former | Fiberglass |
| Voice Coil Inductance (Le) | 0.14mH |
| Voice Coil Wire Material | Aluminum |
| Weight | 0.9 |
