Description:

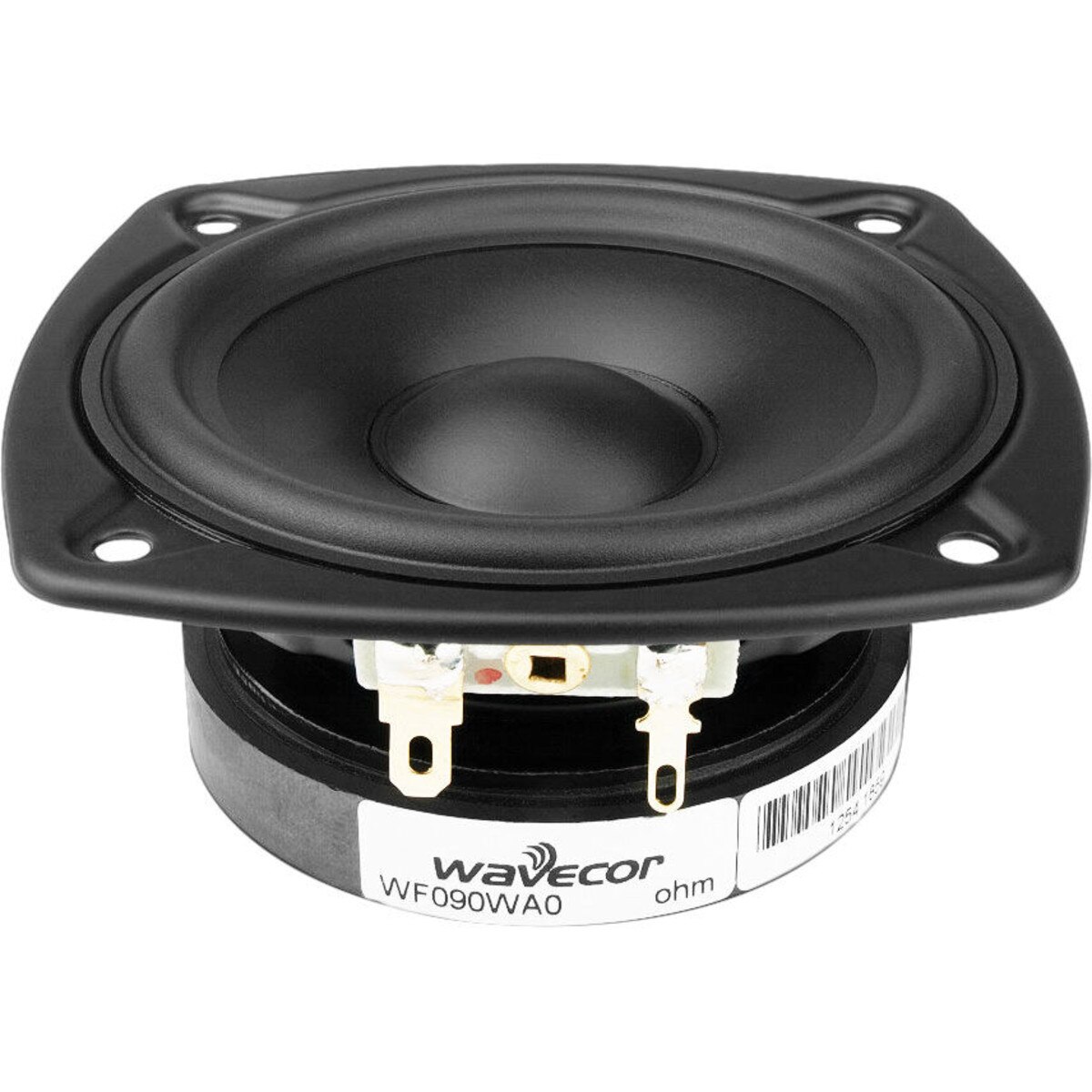

Wavecor WF090WA02 3-1/2" Paper Cone Mid-Woofer 8 Ohm. Part Number: 298-1130 by Wavecor.
Attributes
| Key | Value |
|---|---|
| # Mounting Holes | 4 |
| Baffle Cutout Diameter | 2.99" |
| BL Product (BL) | 3.5T?m |
| Brand | Wavecor |
| Compliance Equivalent Volume (Vas) | 0.04ft? |
| Cone Material | Paper |
| DC Resistance (Re) | 5.5? |
| Depth | 1.54" |
| Electromagnetic Q (Qes) | 1.04 |
| Frequency Response | 120 to 20,000Hz |
| Impedance | 8? |
| Magnet Material | Ferrite |
| Maximum Linear Excursion (Xmax) | 2.75mm |
| Mechanical Compliance of Suspension (Cms) | 0.62mm/N |
| Mechanical Q (Qms) | 6 |
| Model | WF090WA02 |
| Nominal Diameter | 3-1/2" |
| Overall Outside Diameter | 3.54" |
| Part Number | 298-1130 |
| Power Handling (MAX) | 30 Watts |
| Power Handling (RMS) | 15 Watts |
| Resonant Frequency (Fs) | 110Hz |
| Sealed F3 | 116.5Hz |
| Sealed Volume | 0.059ft? |
| Sensitivity | 84dB 2.83V/1m |
| Surface Area of Cone (Sd) | 36cm? |
| Total Q (Qts) | 0.89 |
| Unit of Measure | Each |
| UPC | 848864054667 |
| Vented F3 | 65.67Hz |
| Vented Volume | 0.188ft? |
| Voice Coil Diameter | 0.87" |
| Voice Coil Former | Fiberglass |
| Voice Coil Inductance (Le) | 0.22mH |
| Voice Coil Wire Material | Aluminum |
| Weight | 0.9 |
