Description:

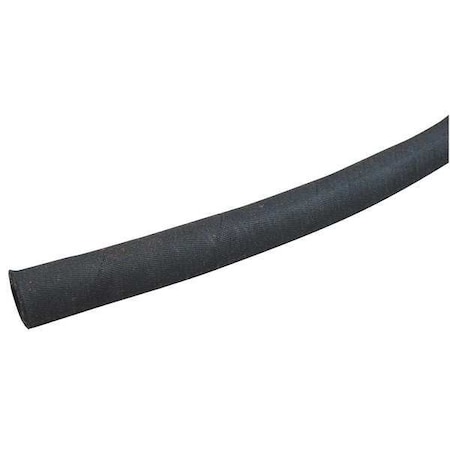

Hydraulic Hose, Hose Inside Dia. 3/8 in, Hose Outside Dia. 53/64 in, Hose Length 50 ft, Hose Tube Material Nitrile, Hose Cover Material Synthetic Rubber, Hose Reinforcement Type Braid, Hose Reinforcement Material Carbon Steel, Hose Color Black, Series H245L, Max. Working Pressure @ 70 F 5,000 psi, Safety Factor 4:1, Temp. Range -70 Degrees to 212 Degrees F, Standards EN857 2SC, MSHA, SAE 100R16, Hose Configuration Bulk Hose
Attributes
| Key ^ | Value |
|---|---|
| Application | Low Temperature Hydraulic |
| Cover Material, Hose Cover Material | Synthetic Rubber |
| Dash Size | 06 |
| Hose Color | Black |
| Hose Configuration | Bulk Hose |
| Hose Inside Dia. | 3/8 in |
| Hose Inside Dia. (In.) | 3/8 |
| Hose Length | 50 ft |
| Hose Length (Ft.) | 50 |
| Hose Outside Dia. | 53/64 in |
| Hose Outside Dia. (In.) | 11/16 |
| Hose Tube Material | Nitrile |
| Item | Hydraulic Hose |
| Max. Working Pressure @ 70 F | 5,000 psi |
| Min. Bend Radius (In.) | 2-1/2 |
| Operating Pressure (PSI) | 5000 |
| Reinforcement | (2) Wire Braid |
| Safety Factor | 4:1 |
| Standards | EN857 2SC, MSHA, SAE 100R16 |
| Temp. Range | -70 Degrees to 212 Degrees F |
| Temp. Range (F) | -70 Degrees to 212 Degrees |
| Tube Material | Low Temperature Compound |
| Type | Crimped |
