WEG Electric Motor 00118ST3QIE143TC-W22

B00BC85OX2

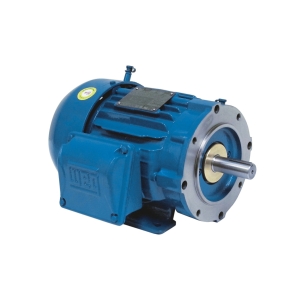

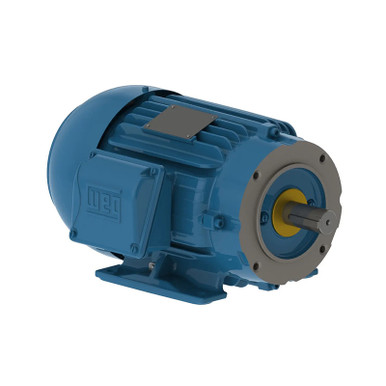

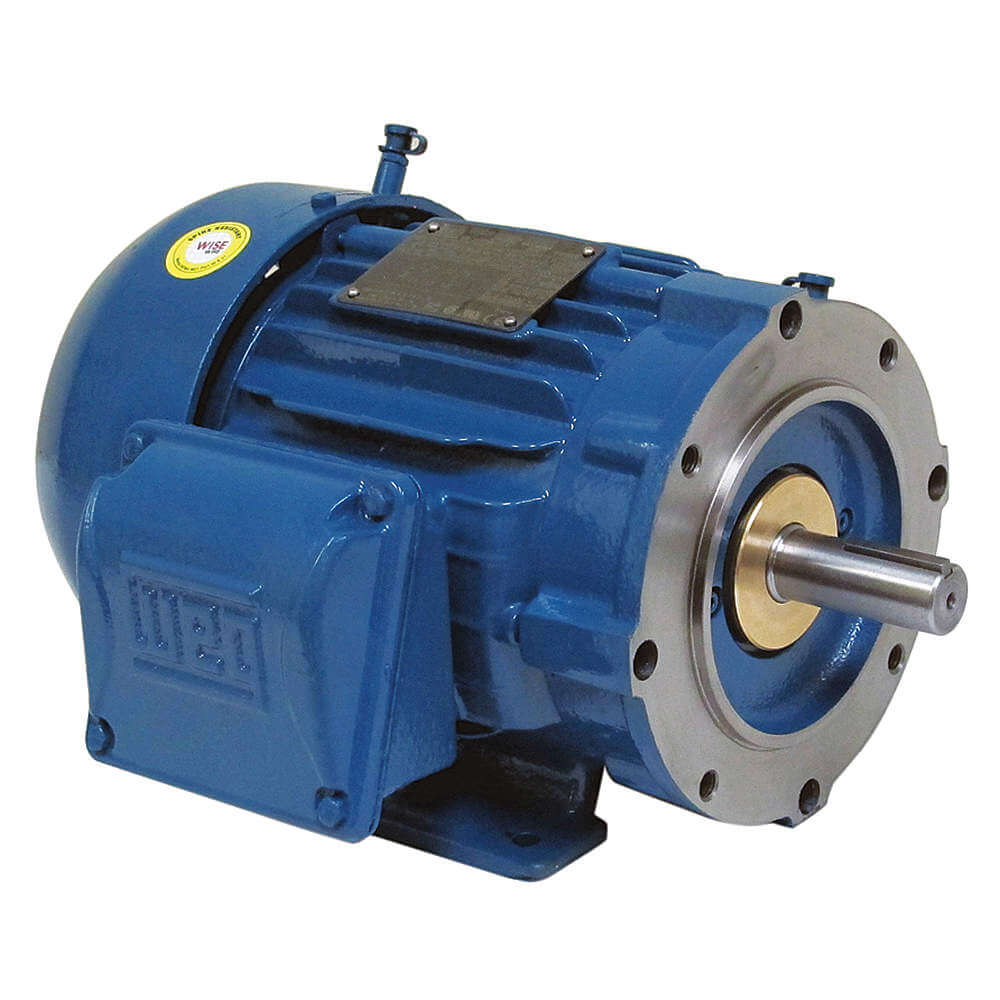

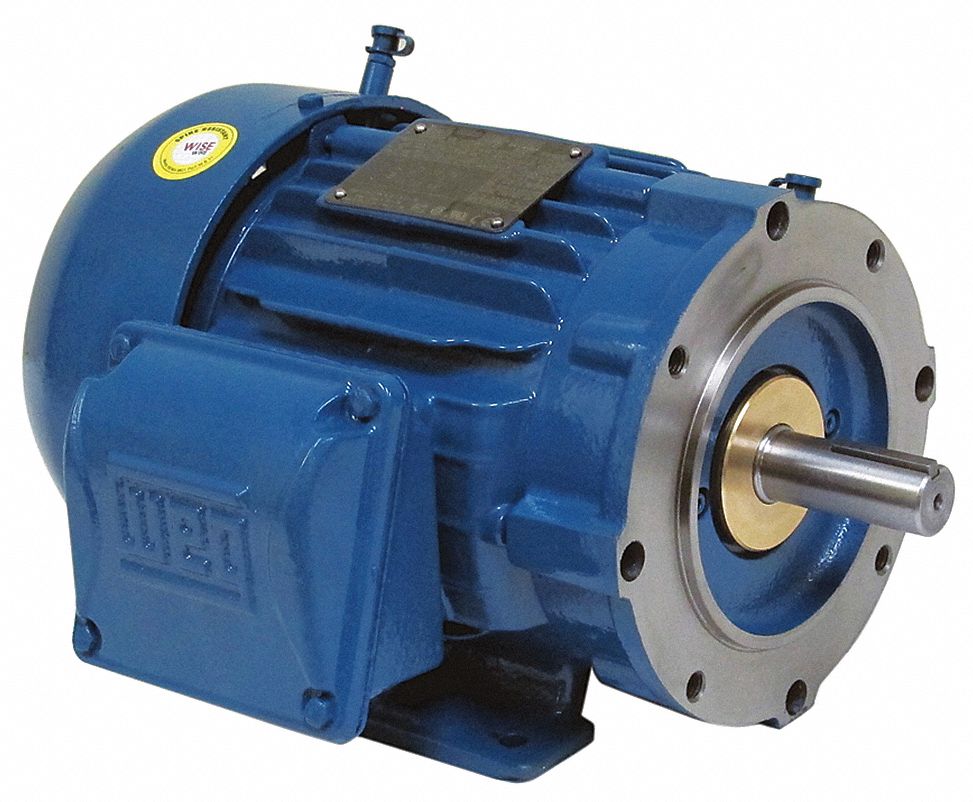

WEG Electric, 00118ST3QIE143TC-W22, 1HP, 1800RPM, 3PH, 460V, 143/5TC Frame, C-Face Flange, Foot Mount, TEFC, IEEE 841 Motor.

WEG Electric, 00118ST3QIE143TC-W22, 1HP, 1800RPM, 3PH, 460V, 143/5TC Frame, C-Face Flange, Foot Mount, TEFC, IEEE 841 Motor.zoom

Attributes

Key Value
Amperage Rating1.47 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
CC NumberCC029A
ClassificationIEEE 841
Comments60 Hz
CompositionCast Iron
ConditionNew
Constant Torque Speed R.20:1
ConstructionCast Iron
Country of Origin (subj.Multiple
Degree of ProtectionIP55
Description:MOTOR 1HP 4P 143/5TC WF.
Dimensions13.358 in L
Drive End Flange TypeC-Face
DutyContinuous
Duty CycleContinuous
Efficiency %85.5 %
EnclosureTEFC, IC411-TEFC, Total.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight52.00
Family SeriesWEG Electric Motors
FL Amps1.41
FL Efficiency85.5
FlangesFlange C
Footnotes20:1 CT and 1000:1 VT
Frame143-5TC, 143TC, 143/5TC.
Frame MaterialCast Iron
Frame RemarksFooted, Premium, IEEE 8.
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps1.50
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Hertz60
Horsepower1 hp
HP1
Hz60
Ins. ClassF
Insulation ClassClass F
ItemIEEE 841 Motor
Item ConditionFactory New
Item Number00118ST3QIE143TC-W22
Length Less Shaft11 1/4 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00118ST3QIE143TC-W22
Manufacturers Warranty .5 yr
MaterialCast Iron
Max. Ambient Temp.40 Degrees C
MFG Part #:00118ST3QIE143TC-W22
Model12373436
Motor ApplicationIEEE Motor
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting TypeFace/Base
Motor Service Factor1.25
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, C-Face Foot.
Nameplate RPM1,760
NEMA DesignNone
NEMA Frame143/5TC
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency85.5 %
Nominal Voltage415 VAC, 480 VAC
Number of Poles4
Number of Speeds1
Output Rating1 hp
Overall Length13 1/2 in
Part Number00118ST3QIE143TC-W22
Phase3, 3 ph, Three
Product TypeSevere Duty & IEEE 841
RotationCW/CCW
RPM1760, 1,800 RPM, 1800
RPM Group1701-1800
RPM Range1,701-1,800
Service Factor1.25
Shaft Dia.7/8 in
Shaft Length2 1/4 in
Shaft Size7/8 in Dia x 2-1/4 in L
Speed (RPM)1800
StandardNEMA MG-1
StandardsCE, CSA, NOM, UL
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800 rpm
Terminal BoxLeft position
UPC:7894171284467
Usable @ 200VNo
Usable @ 208VNo
Voltage460V, 460V AC, 460, 460.
Voltage (AC)460 VAC
Voltage Compatibility200-230/440V AC, 200-23.
Volts460
Weight55.750000, 54 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com00118ST3QIE143TC-W22524.01In StockWEG54.0524.0 @ 1
thumbzoomvfds.com00118ST3QIE143TC-W22696.01In StockWEG696.0 @ 1
thumbzoomRadwell00118ST3QIE143TC-W22750.012WEG750.0 @ 1
thumbzoomMRO Supply1310253767.631In StockWEG767.63 @ 1
thumbzoommotorsandcontrol.com00118ST3QIE143TC-W22770.141In StockWEG Electric52.0770.14 @ 1
thumbzoomGalco00118ST3QIE143TC-W22-WEG798.331In StockWEG Electric798.33 @ 1
kscdirect.comWEG 00118ST3QIE143TC-W22827.361In StockWEG ELECTRIC CORP827.36 @ 1
thumbzoomZoroG4165165829.481In Stock26Weg45.0829.48 @ 1
thumbzoomindustrialrefrigerationparts.com00118ST3QIE143TC-W22838.431In StockWEG55.75838.43 @ 1
thumbzoomDealers Electric00118ST3QIE143TC-W22887.451In StockWeg52.0887.45 @ 1
thumbzoomPurvis00118ST3QIE143TC-W22888.411In StockWEG888.41 @ 1
motionindustries.com047015811246.81In StockWEG Electric Corporation1246.8 @ 1
thumbzoomsustainablesupply.comC14877921254.051In StockWEG45.01254.05 @ 1
thumbzoomNational Supply NetworkB8816521325.481In StockWeg Electric Motors1325.48 @ 1
thumbzoomRaptor SuppliesAA4JEB1361.3568931In StockWEG1361.356893 @ 1
