WEG Electric Motor 00152ST3HIE182T-W22

B00BC8MVM4

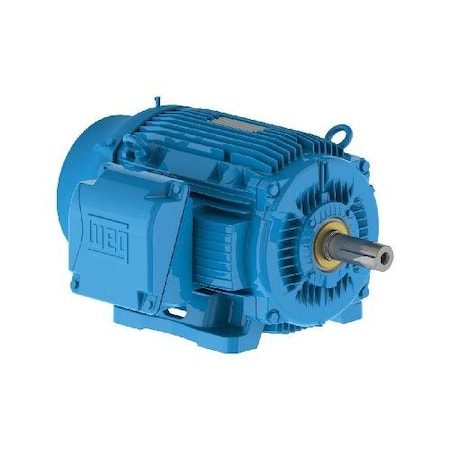

WEG Electric, 00152ST3HIE182T-W22, 1.5HP, 1200RPM, 3PH, 575V, 182/4T Frame, Standard Flange, Foot Mount, TEFC, IEEE 841 Motor.

WEG Electric, 00152ST3HIE182T-W22, 1.5HP, 1200RPM, 3PH, 575V, 182/4T Frame, Standard Flange, Foot Mount, TEFC, IEEE 841 Motor.zoom

Attributes

Key Value
Amperage Rating2.03 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
ClassificationIEEE 841
Comments60 Hz
CompositionCast Iron
ConditionNew
Constant Torque Speed R.20:1
ConstructionCast Iron
Country of Origin (subj.Brazil
Degree of ProtectionIP55
Description:MOTOR 1.5HP 6P 182/4T W.
Dimensions15.86 in L
Drive End Flange TypeStandard
EnclosureTEFC, IC411 -TEFC, IC41.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight74.00
Family SeriesWEG Electric Motors
FL Amps1.91
FL Efficiency87.5
FlangesWithout Flanges
FRAME182/4T
Frame182/4T, 182T, 184T
Frame MaterialCast Iron
Frame RemarksFooted, Premium, IEEE 8.
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps2.03
Gross Weight0 lbs
Hertz60
Horsepower1-1/2 hp, 1.5 hp
HP1.5
Hz60
Insulation ClassClass F
Item ConditionFactory New
Item Number00152ST3HIE182T-W22
Kw1.1
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00152ST3HIE182T-W22
MaterialCast Iron
MFG Part #:00152ST3HIE182T-W22
Model12373789
Motor Enclosure DesignTEFC
Motor Mounting TypeFOOT
Motor Service Factor1.25
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, Footed
Nameplate RPM1200
NEMA Frame182/4T
Net Weight0 lbs
Nominal Efficiency87.5
Nominal Voltage575 VAC, 600 VAC
Number of Poles6
Number of Speeds1
Output Rating1.5 hp
Overall Length15.86
Part Number00152ST3HIE182T-W22
Phase3, 3 ph
Product TypeSevere Duty & IEEE 841
RotationCW/CCW
RPM1165, 1200, 1,200 RPM
Service Factor1.25
Speed1170 rpm
Speed (RPM)1200
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed1200 rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
UPC:7894171284887
VOLTAGE575
Voltage575 V, 575V, 575
Voltage (AC)575 VAC
Volts575
WEIGHT74
Weight107.940000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Global IndustrialB880855960.01In StockWEG960.0 @ 1
thumbzoomWalker Industrial00152ST3HIE182T-W22964.51In Stock17WEG964.5 @ 1
thumbzoomMRO Supply13102561015.621In StockWEG1015.62 @ 1
thumbzoommotorsandcontrol.com00152ST3HIE182T-W221018.931In StockWEG Electric74.01018.93 @ 1
thumbzoomGalco00152ST3HIE182T-W22-WEG1056.241In StockWEG Electric1056.24 @ 1
kscdirect.comWEG 00152ST3HIE182T-W221094.641In StockWEG ELECTRIC CORP1094.64 @ 1
thumbzoomindustrialrefrigerationparts.com00152ST3HIE182T-W221109.281In StockWEG107.941109.28 @ 1
thumbzoomDealers Electric00152ST3HIE182T-W221174.151In StockWeg74.01174.15 @ 1
thumbzoomPurvis00152ST3HIE182T-W221175.41In StockWEG1175.4 @ 1
thumbzoomRadwell00152ST3HIE182T-W221200.01In StockWEG1200.0 @ 1
thumbzoomZoroG3034354521245.061In StockWeg74.01245.06 @ 1
thumbzoomvfds.com00152ST3HIE182T-W221286.01In StockWEG1286.0 @ 1
thumbzoomNational Supply NetworkB8808551683.991In StockWeg Electric Motors1683.99 @ 1
