WEG 01018OT3H215TC-S

B019TUY74Q

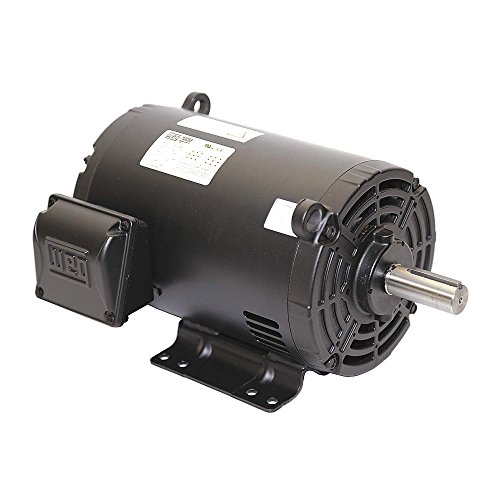

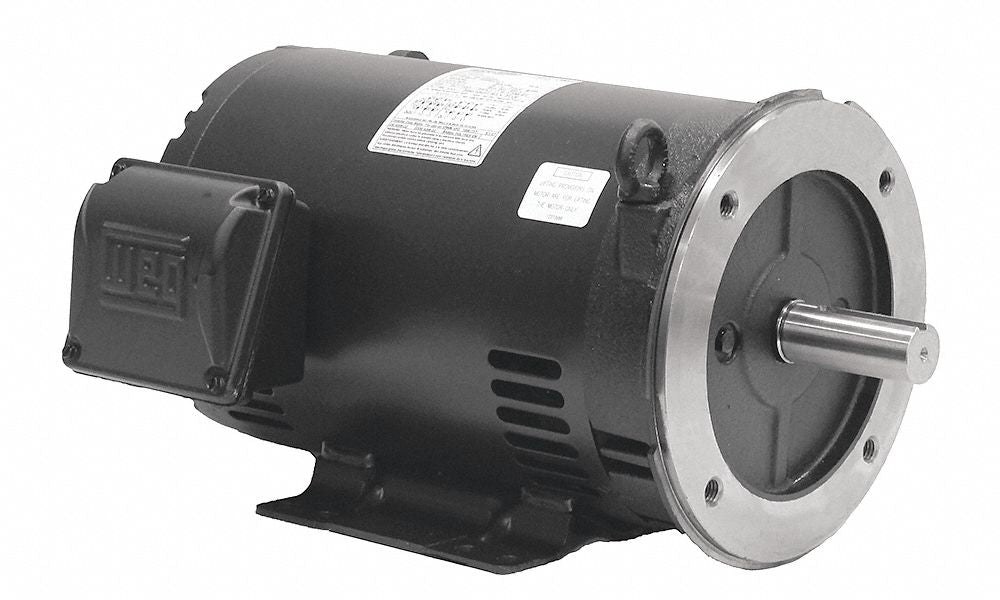

WEG 01018OT3H215TC-S W01 ODP NEMA Premium Efficiency Severe Duty/General Purpose Motor, 10 HP, 3-Phase, 1770 rpm, 575 V, 60 Hz, 213/5TC Frame

WEG 01018OT3H215TC-S W01 ODP NEMA Premium Efficiency Severe Duty/General Purpose Motor, 10 HP, 3-Phase, 1770 rpm, 575 V, 60 Hz, 213/5TC Framezoom

Attributes

Key Value
Amperage Rating9.9 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
CC NumberCC029A
ClassificationThree Phase
Comments60 Hz
CompositionSteel
ConditionNew
ConstructionRolled Steel
Country of Origin (subj.Multiple
Description:MOTOR 10HP 4P 213/5TC W.
Dimensions16.575 in L
Drive End Flange TypeC-Face
DutyContinuous
EnclosureODP, Open, IC01 - ODP
Enclosure TypeOpen Drip-Proof
Estimated Weight149.00
Family SeriesWEG Electric Motors
FL Amps9.90
FL Efficiency91.7
FlangesFlange C
Frame213-5TC, 215TC, 213TC, .
Frame MaterialRolled Steel
Frame RemarksFooted
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps9.9
Green Certification or .NEMA Premium Rated
Green Environmental Att.Does not Contain Formal.
Gross Weight0 lbs
Hertz60
Horsepower10 hp
HP10
Hz60
Ins. ClassF
Insulation ClassClass F
Inverter RatedYes
ItemGeneral Purpose Motor
Item ConditionFactory New
Item Number01018OT3H215TC-S
Length Less Shaft14 3/8 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number01018OT3H215TC-S
Manufacturers Warranty .3 yr
MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
MFG Part #:01018OT3H215TC-S
Model12674768
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialRolled Steel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace/Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, C-Face Foot.
Nameplate RPM1770
NEMA Frame213/5TC
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency91.7 %
Nominal Voltage575 VAC, 600 VAC
Number of Poles4
Number of Speeds1
Output Rating10 hp
Overall Length17 3/4 in
Part Number01018OT3H215TC-S
Phase3, 3 ph
Product TypeGeneral Purpose
Replaces01018OT3H215TC
RotationCW/CCW
RPM1,800 RPM, 1700 - 1800,.
RPM Group1701-1800
RPM Range1701-1800
Service Factor1.15
Shaft Dia.1 3/8 in
Shaft Length3 3/8 in
Shaft Size1-3/8 in Dia x 3-3/8 in.
Speed1770 rpm
Speed (RPM)1800
StandardNEMA MG-1
StandardsUL (E104590, CSA (70014.
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800 rpm
Terminal BoxLeft position
UPC:7909158529261
Voltage575 V, 575V, 575
Voltage (AC)575 VAC
Voltage Compatibility575
Volts575
Weight137.950000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG8515762820.681In Stock15Weg150.0820.68 @ 1
thumbzoomWalker Industrial01018OT3H215TC-S864.751In Stock17WEG864.75 @ 1
kscdirect.comWEG 01018OT3H215TC-S864.751In StockWEG ELECTRIC CORP864.75 @ 1
thumbzoommotorsandcontrol.com01018OT3H215TC-S864.751In StockWEG Electric149.0864.75 @ 1
thumbzoomMRO Supply2520215910.581In StockWEG910.58 @ 1
thumbzoomGalco01018OT3H215TC-S-WEG947.01In StockWEG Electric947.0 @ 1
thumbzoomindustrialrefrigerationparts.com01018OT3H215TC-S994.561In StockWEG137.95994.56 @ 1
thumbzoomRadwell01018OT3H215TC-S1050.01In StockWEG1050.0 @ 1
thumbzoomDealers Electric01018OT3H215TC-S1052.721In StockWeg149.01052.72 @ 1
thumbzoomPurvis01018OT3H215TC-S1053.841In StockWEG1053.84 @ 1
thumbzoomvfds.com01018OT3H215TC-S1153.01In StockWEG1153.0 @ 1
thumbzoomsustainablesupply.comC15551871437.761In StockWEG150.01437.76 @ 1
thumbzoomNational Supply NetworkB8731371460.791In StockWeg Electric Motors1460.79 @ 1
thumbzoomRaptor SuppliesAG3FDG1630.60472251In StockWEG1630.6047225 @ 1
