Weg Electric 01036OP3EFP213JMV-S

B07C98W52T

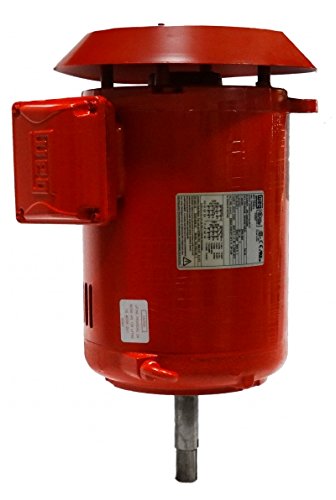

WEG Electric 01036OP3EFP213JMV-S, 10HP, 3600 RPM, 3PH, 230V/460V, 213/5JM Frame, C-Face Flange, Footless, Open, Fire Pump Motor

WEG Electric 01036OP3EFP213JMV-S, 10HP, 3600 RPM, 3PH, 230V/460V, 213/5JM Frame, C-Face Flange, Footless, Open, Fire Pump Motorzoom

Attributes

Key Value
Amperage Rating12.2 A
Application TypeFire Pump Motors, Jet P.
ClassificationFire Pump
Comments60 Hz
CompositionSteel
ConditionNew
ConstructionRolled Steel
Description:MOTOR 10HP 2P 213/5JM W.
Dimensions18.977 in L
Drive End Flange TypeC-Face
EnclosureODP, Open, IC01 - ODP
Enclosure TypeOpen Drip-Proof
Estimated Weight117.00
Family SeriesWEG Electric Motors
FL Amps12.2
FL Efficiency88.5
FlangesFlange C
Frame213JM, 213/5JM, 213JMV
Frame RemarksFootless
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower10 hp
HP10
Hz60
Item ConditionFactory New
Item Number01036OP3EFP213JMV-S
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number01036OP3EFP213JMV-S
MFG Part #:01036OP3EFP213JMV-S
Model13549538
MountingFootless (W-6), Footless
Mounting TypeFootless Vertical, Foot.
NEMA Frame213/5JM
Net Weight0 lbs
Nominal Voltage208 VAC, 240 VAC
Number of Poles2
Number of Speeds1
Output Rating10 hp
Part Number01036OP3EFP213JMV-S
Phase3, 3 ph
Product TypePump
RPM3600, 3,600 RPM
Service Factor1.15
Speed3600 rpm
Speed (RPM)3600
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed3600 rpm
Terminal BoxLeft position
UPC:7909322399959
Variable Torque Speed R.1000:1
Voltage230/460//190-220/380-41.
Voltage (AC)230 VAC
Voltage Rating230/460 VAC
Volts208-230/460*
Weight111.260000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomWalker Industrial01036OP3EFP213JMV-S900.751In Stock17WEG900.75 @ 1
thumbzoommotorsandcontrol.com01036OP3EFP213JMV-S900.751In StockWEG Electric117.0900.75 @ 1
kscdirect.comWEG 01036OP3EFP213JMV-S908.061In StockWEG ELECTRIC CORP908.06 @ 1
thumbzoomMRO Supply5739801948.491In StockWEG948.49 @ 1
thumbzoomGalco01036OP3EFP213JMV-S-WEG986.431In StockWEG Electric986.43 @ 1
thumbzoomindustrialrefrigerationparts.com01036OP3EFP213JMV-S1035.961In StockWEG111.261035.96 @ 1
thumbzoomDealers Electric01036OP3EFP213JMV-S1096.541In StockWeg115.01096.54 @ 1
