mpn:
brand:
manufacturer:
MPN:
Description:

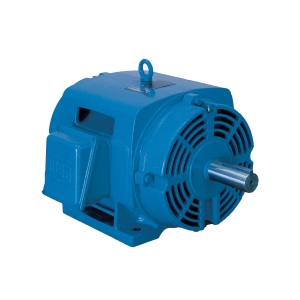

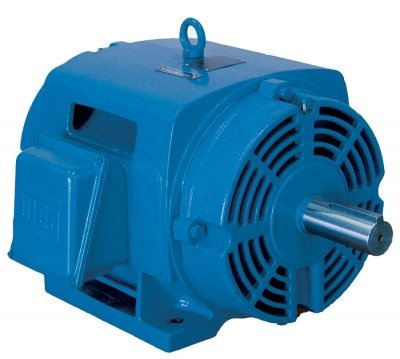

WEG 03018OT3E286T-G 30HP 1800 3 60 208-230/460V G ODP-NP-SGR - MROSupply.com
Weight:
459.0
Weight:
459.0 LB
Price:
1688.53
qty:
21
simpleSku:
NTY0MA:::03018OT3E286T-G
sku:
NTY0MA::6K:03018OT3E286T-G@y0
condition:
11
seller:
MRO Supply
amzMan:
weg electric
DropShip:
True
Attributes
| Key | Value |
|---|---|
| Classification | HVAC |
| Composition | Cast Iron |
| Condition | New |
| Construction | Cast Iron |
| Degree of Protection | IP55 |
| Description: | MOTOR 30HP 4P 286T WFA1 |
| Drive End Flange Type | Standard |
| Efficiency % | 94.1 % |
| Enclosure | IC411 -TEFC, ODP, Open, Drip Proof |
| Estimated Weight | 459.00 |
| Family Series | WEG Electric Motors |
| FL Amps | 35.4 |
| FL Efficiency | 94.1 |
| Flanges | Without Flange |
| Frame | 286T |
| Frame Remarks | Footed, HVAC, With Internal Aegis Shaft Grounding Rings |
| Frequency | 60 Hz |
| Gross Weight | 0 lbs |
| Hertz | 60 |
| Horsepower | 30 hp |
| HP | 30 |
| Item Condition | Factory New |
| Item Number | 03018OT3E286T-G |
| Manufacturer | WEG Electric, WEG, WEG ELECTRIC CORP |
| Manufacturer Part Number | 03018OT3E286T-G |
| MFG Part #: | 03018OT3E286T-G |
| Mounting | Foot Mount, Foot-mounted (F-1) |
| Mounting Type | Foot Mount |
| NEMA Frame | 286T |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Output Rating | 2.5/10 HP |
| Part Number | 03018OT3E286T-G |
| Phase | 3 |
| Product Type | Motors w/Aegis Shaft Grounding Ring |
| Replaced By | 03018OT3E286T-W40G |
| RPM | 1,800 RPM, 1800 |
| Service Factor | 1.15 |
| Speed (RPM) | 1800 |
| Standard | NEMA MG-1 |
| Supplier: | WEG ELECTRIC CORP |
| Synchronous Speed | 900/1800 rpm |
| Terminal Box | Left position |
| UPC: | 7909158639311 |
| Voltage | 460 V, 208V, 230V, 460V |
| Voltage (AC) | 208 VAC |
| Volts | 208/230/460 |
| Weight | 441.730000 |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | MRO Supply | 2520588 | 1688.53 | 1688.53 | 1 | In Stock | 9 | WEG | 459.0 | 1688.53 @ Qty: 1+ |
 | industrialrefrigerationparts.com | 03018OT3E286T-G | 1854.19 | 1854.19 | 1 | In Stock | WEG | 441.73 | 1854.19 @ Qty: 1+ | |
 | Galco | 03018OT3E286T-G-WEG | 2101.6 | 2101.6 | 1 | In Stock | WEG Electric | 2101.6 @ Qty: 1+ | ||
 | motorsandcontrol.com | 03018OT3E286T-G | 2250.21 | 2250.21 | 1 | In Stock | WEG Electric | 459.0 | 2250.21 @ Qty: 1+ | |
| kscdirect.com | WEG 03018OT3E286T-G | 2417.39 | 2417.39 | 1 | In Stock | WEG ELECTRIC CORP | 2417.39 @ Qty: 1+ | |||
 | Radwell | 03018OT3E286T-G | 2550.0 | 2550.0 | 1 | In Stock | WEG | 2550.0 @ Qty: 1+ | ||
 | Purvis | 03018OT3E286T-G | 2595.76 | 2595.76 | 1 | In Stock | WEG | 2595.76 @ Qty: 1+ | ||
 | Dealers Electric | 03018OT3E286T-G | 2598.41 | 2598.41 | 1 | In Stock | Weg | 433.0 | 2598.41 @ Qty: 1+ |
