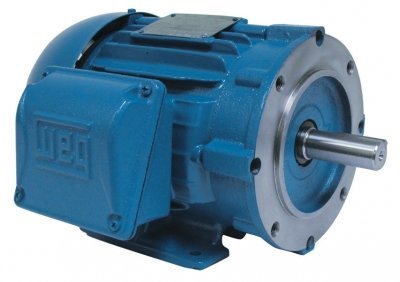

WEG Electric Motor 04018ET3E324TSC-W22
WEG Electric Motorzoom

WEG Electric Motor 04018ET3E324TSC-W22

mpn:
04018ET3E324TSC-W22
brand:
WEG
manufacturer:
WEG
MPN:
04018ET3E324TSC-W22
Description:
04018ET3E324TSC-W22 40HP 4P TEFC 230/460V 324TSC TEFC-NEMA Pr
Weight:
40.0
Weight:
40.0 LB
Preferred Price:
4198.43
Price:
4198.43
Min Simple Price:
2372.0
Absolute Min Price:
3368.24
Min Price:
3368.24
qty:
21
simpleSku:
NTY0MA:::04018ET3E324TSC-W22
sku:
NTY0MA::UE:04018ET3E324TSC-W22@y0
condition:
11
seller:
electricmotorwholesale.com
amzMan:
weg electric
HazMat:
False
DropShip:
True

Attributes

Key ^Value
Amperage Rating104 to 94.2/47.1 A
Application TypeGeneral Purpose AC Motors
Bearing TypeBall
ClassificationThree Phase
Composition, Construction, MaterialCast Iron
ConditionNew
Constant Torque Speed Range20:1
Country of Origin (subject to change)Brazil
Degree of ProtectionIP55
Description:MOTOR 40HP 4P 324/6TSC WFF2
Dimensions29.616 in L
Drive End Flange TypeC-Face
Efficiency %94.1 %
EnclosureTEFC, IC411-TEFC
Enclosure, Enclosure TypeTotally Enclosed Fan Cooled
Estimated Weight640.00
Family SeriesWEG Electric Motors
FL Amps48.2
FL Efficiency94.1
FlangesC-Face Flange
Frame324/6TSC, 326TSC
Frame RemarksFooted
Frame, NEMA Frame324TSC
Frequency, Frequency Rating60 Hz
Gross Weight, Net Weight0 lbs
Hertz, Hz60
Horsepower, Output Rating40 hp
HP40
Insulation ClassClass F
Item ConditionFactory New
Item Number, Manufacturer Part Number, MFG Part #:, Part Number04018ET3E324TSC-W22
ManufacturerWEG Electric, WEG
Manufacturer, Supplier:WEG ELECTRIC CORP
Model13420730
MountingFoot-mounted (F-1)
Mounting TypeC-Face Footed
Mounting, Mounting TypeFoot Mount
Nominal Voltage, Voltage (AC)208 VAC
Number of Poles4
Number of Speeds1
Phase3, 3 ph
Product TypeGeneral Purpose
RotationCW/CCW
RPM1,800 RPM
RPM, Speed (RPM)1800
Service Factor1.25
Speed1775 rpm
StandardNEMA MG-1
Synchronous Speed1800rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
UPC:7909322107301
Voltage230/460//380 V, 208-230/460, 208V, 230V, 460V
Volts208/230/460
Weight627.240000

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomelectricmotorwholesale.com04018ET3E324TSC-W222372.02372.01In StockWEG587.02372.0 @ Qty: 1+
thumbzoomWalker Industrial04018ET3E324TSC-W223225.03225.01In Stock17WEG3225.0 @ Qty: 1+
thumbzoommotorsandcontrol.com04018ET3E324TSC-W223225.03225.01In StockWEG Electric640.03225.0 @ Qty: 1+
thumbzoomMRO Supply13123703290.433290.431In StockWEG3290.43 @ Qty: 1+
kscdirect.comWEG 04018ET3E324TSC-W223302.283302.281In StockWEG ELECTRIC CORP3302.28 @ Qty: 1+
thumbzoomGalco04018ET3E324TSC-W22-WEG3531.733531.731In StockWEG Electric3531.73 @ Qty: 1+
thumbzoomDealers Electric04018ET3E324TSC-W223533.353533.351In StockWeg640.03533.35 @ Qty: 1+
thumbzoomindustrialrefrigerationparts.com04018ET3E324TSC-W223576.623576.621In StockWEG627.243576.62 @ Qty: 1+
thumbzoomZoroG5036146193638.743638.741In Stock11Weg3638.74 @ Qty: 1+
thumbzoomvfds.com04018ET3E324TSC-W224300.04300.01In StockWEG4300.0 @ Qty: 1+
thumbzoomPurvis04018ET3E324TSC-W224773.04773.01In StockWEG4773.0 @ Qty: 1+
thumbzoomNational Supply NetworkB8740735469.995469.991In StockWeg Electric Motors5469.99 @ Qty: 1+
B00BC7XIUE
WEG Electric Motor 04018ET3E324TSC-W22

WEG Electric, 04018ET3E324TSC-W22, 40HP, 1800RPM, 3PH, 208V;230V;460V, 324TSC Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motor.

WEG Electric, 04018ET3E324TSC-W22, 40HP, 1800RPM, 3PH, 208V;230V;460V, 324TSC Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motor.zoom
