WEG 05518ET3Y250S/M-W22

B007PB0JMQ

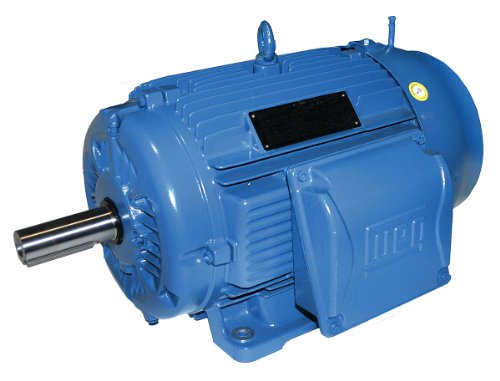

WEG 05518ET3Y250S/M-W22 IEC Tru-Metric Electric Motor, 75 HP,3-Phase, 1785 rpm, 460 V, 60 Hz, Frame 250S/M

WEG 05518ET3Y250S/M-W22 IEC Tru-Metric Electric Motor, 75 HP,3-Phase, 1785 rpm, 460 V, 60 Hz, Frame 250S/Mzoom

Attributes

Key Value
Amperage Rating85.1 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
CC NumberCC029A
ClassificationIEC Metric
CompositionCast Iron
ConditionNew
Constant Torque Speed R.20:1
ConstructionCast Iron
Country of Origin (subj.Multiple
Degree of ProtectionIP55
Description:MOTOR 75HP 4P 250S/M WF.
Dimensions37.992 in L
Drive End Flange TypeStandard
DutyContinuous
Duty CycleContinuous
Efficiency %95.4 %
EnclosureTEFC, IC411-TEFC, Total.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight1241.00
Family SeriesWEG Electric Motors
FL Amps85.1
FL Efficiency95.4
FlangesWithout
Frame250S/M
Frame MaterialCast Iron
Frame RemarksFooted, IEC TRU Metric
Frequency60 Hz, 50 Hz
Frequency Rating60 Hz
Full Load Amps85.1
Full Load Amps @ 50Hz100.0, 94.4, 96.9
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Hertz50, 60
Horsepower75 hp
HP75
HP @ 50Hz75
Hz60
Ins. ClassF
Insulation ClassClass F
ItemMetric Motor
Item ConditionFactory New
Item Number05518ET3Y250S/M-W22
kW55.0
Length Less Shaft825 mm
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number05518ET3Y250S/M-W22
MaterialCast Iron
Max. Ambient Temp.40 Degrees C
MFG Part #:05518ET3Y250S/M-W22
Model11567434
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.25
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, Footed
Nameplate RPM1,785
NEMA DesignN
NEMA Frame250S/M
Net Weight1234 lbs
No. of Speeds1
Nominal Efficiency95.4 %
Nominal Voltage380 VAC
Number of Poles4
Number of Speeds1
Output Rating25 HP
Overall Length965 mm
Part Number05518ET3Y250S/M-W22
Phase3, 3 ph, Three
Product TypeIEC Metric Motors
RotationCW/CCW
RPM1,800 RPM, 1785, 1800/1.
RPM @ 50Hz1,480
RPM Range1,701-1,800
Service Factor1.25
Service Factor @ 50Hz1
Shaft Dia.65 mm
Shaft Length140 mm
Shaft Size70 mm Dia
Special FeaturesIEC Metric Motors
Speed (RPM)1800
StandardNEMA MG-1
StandardsCE, CSA (LR38324), UL (.
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800 rpm
Terminal BoxLeft position
UPC:7891327437371
Usable @ 200VNo
Usable @ 208VNo
Voltage380V, 415V, 460V, 660V,.
Voltage (AC)380 VAC
Voltage @ 50Hz380V AC, 400V AC, 415V .
Voltage Compatibility200-230/440V AC, 200-23.
Volts460//380/415/660/690
Weight1,141 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommotorsandcontrol.com05518ET3Y250S/M-W227100.041In StockWEG Electric1241.07100.04 @ 1
thumbzoomindustrialrefrigerationparts.com05518ET3Y250S/M-W227343.081In StockWEG7343.08 @ 1
thumbzoomGalco05518ET3Y250S/M-W22-WEG7359.971In StockWEG Electric1234.07359.97 @ 1
kscdirect.comWEG 05518ET3Y250S/M-W227627.551In StockWEG ELECTRIC CORP7627.55 @ 1
thumbzoomZoroG98334157899.261In Stock26Weg1234.07899.26 @ 1
AmazonTPB007PB0JMQ7953.071In Stock30WEG7953.07 @ 1
thumbzoomPurvis05518ET3Y250S/M-W228190.351In StockWEG8190.35 @ 1
thumbzoomDealers Electric05518ET3Y250S/M-W228896.821In StockWeg1241.08896.82 @ 1
Airline HydraulicsWEG 05518ET3Y250S/M-W229238.1412WEG9238.14 @ 1
thumbzoomNational Supply NetworkB87432110605.991In StockWeg Electric Motors10605.99 @ 1
thumbzoomRaptor SuppliesAA2GFB11755.00246051In StockWEG11755.0024605 @ 1
