mpn:
brand:
manufacturer:
MPN:
Description:

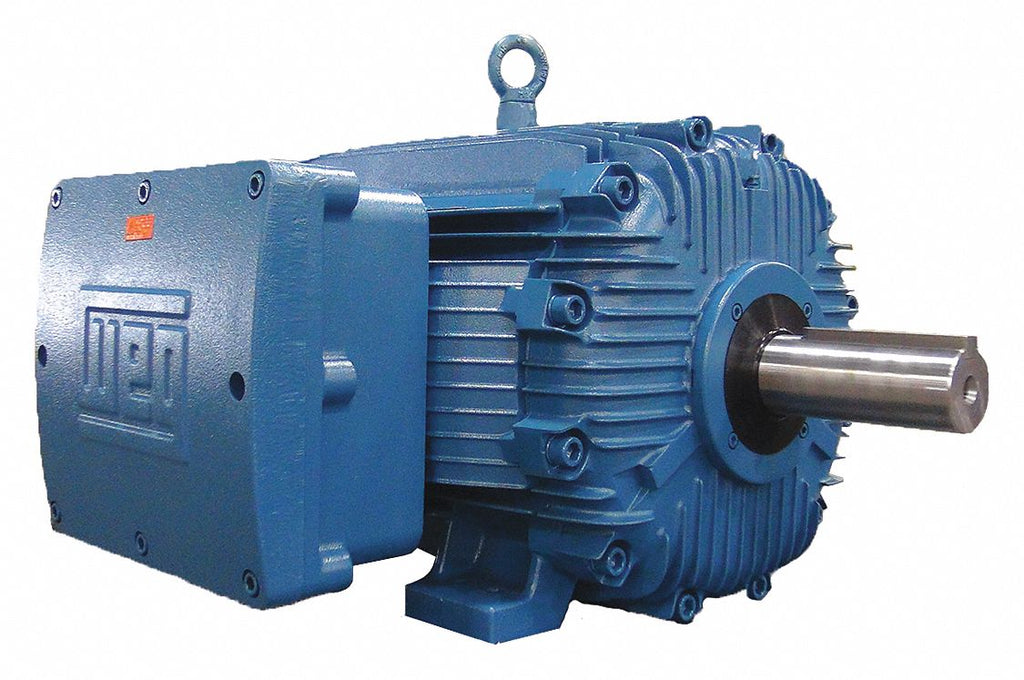

06018XT3E364T 60HP 1800 60 208-230/460 XP - Nema Pr
Weight:
69.1875
Weight:
1014.0 LB
Preferred Price:
9308.43
Price:
9308.43
Min Simple Price:
5259.0
Absolute Min Price:
7467.78
Min Price:
7467.78
Dimensions:
[45.0, 33.0, 30.0]
qty:
21
simpleSku:
jI0Mjg:::06018XT3E364T
sku:
jI0Mjg::MO:06018XT3E364T@y0
condition:
11
seller:
electricmotorwholesale.com
amzMan:
weg
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Amperage Rating | 151 to 137/68.3 A |
| Bearing Type, Motor Bearings | Ball |
| CC Number | CC029A |
| Classification | Three Phase |
| Condition | New |
| Conduit Box Location | Exterior |
| Constant Torque Speed Range | 20:1 |
| Construction | Aluminum |
| Country of Origin (subject to change) | Multiple |
| Degree of Protection | IP55 |
| Description: | MOTOR 60HP 4P 364/5T WFX1 |
| Dimensions | 33.701 in L |
| Drive End Flange Type | Standard |
| Duty, Duty Cycle | Continuous |
| Enclosure | TEFC, XP, IC411-TEFC, XPFC |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Estimated Weight | 1107.00 |
| Explosion Proof Rating | Class I (Group C,D) Class II (Group F,G) |
| FL Amps | 68.3 |
| FL Efficiency | 95.0 |
| Flanges | Without |
| Frame | 365T, 364/5T, 364T |
| Frame Material, Material, Motor Frame Material | Cast Iron |
| Frame Remarks, Mounting Type | Footed |
| Frequency, Frequency Rating | 60 Hz |
| Full Load Amps | 137.0/68.3 |
| Green Certification or Other Recognition | NEMA Premium Rated |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Hazardous Location Class | 1 C,D / 2 F,G |
| Hazardous Location Division | Division 1 |
| Hertz, HP, Hz | 60 |
| Horsepower | 60 hp |
| Ins. Class | F |
| Insulation Class | Class F |
| Item | Hazardous Location Motor |
| Item Condition | Factory New |
| Length Less Shaft | 27 13/16 in |
| Manufacturer | WEG Electric, WEG |
| Manufacturer, Supplier: | WEG ELECTRIC CORP |
| Manufacturers Warranty Length | 3 yr |
| Max. Ambient Temp. | 40 Degrees C |
| MFG Part #:, Part Number | 06018XT3E364T |
| Model | 11439789 |
| Motor Application | Hazardous Location |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor, Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation, Rotation | CW/CCW |
| Motor Thermal Protection | T-Stat |
| Mounting | Foot Mount, Foot-mounted (F-1) |
| Nameplate RPM | 1,780 |
| NEMA Design | B |
| No. of Speeds, Number of Speeds | 1 |
| Nominal Efficiency | 95 % |
| Number of Poles | 4 |
| Output Rating | 25 HP |
| Overall Length | 33 11/16 in |
| Phase | 3, Three, 3 ph |
| Product Type | Explosion Proof |
| RPM | 1780 |
| RPM Range | 1,701-1,800 |
| RPM, Speed (RPM) | 1800 |
| Shaft Dia. | 2 3/8 in |
| Shaft Length | 5 7/8 in |
| Shaft Size | 2-3/8 in Dia x 5-7/8 in L |
| Special Features | Explosion Proof AC Motors |
| Speed | 1780 rpm |
| Standard | NEMA MG-1 |
| Standards | CSA Certified (LR50962), UL Listed (E87848) |
| Synchronous Speed | 1800 rpm |
| Temp. Code | T3C |
| Terminal Box | Left position |
| UPC: | 7891327153356 |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 208-230/460V AC, 575 V, 208-230/460, 208V, 230V, 460V |
| Voltage Compatibility | 208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC |
| Volts | 208/230/460 |
| Weight | 210 lb |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | electricmotorwholesale.com | 06018XT3E364T | 5259.0 | 5259.0 | 1 | In Stock | WEG | 1005.0 | 5259.0 @ Qty: 1+ | |
 | Walker Industrial | 06018XT3E364T | 7845.0 | 7845.0 | 1 | In Stock | 17 | WEG | 7845.0 @ Qty: 1+ | |
 | motorsandcontrol.com | 06018XT3E364T | 8287.74 | 8287.74 | 1 | In Stock | WEG Electric | 1107.0 | 8287.74 @ Qty: 1+ | |
 | Zoro | G9811496 | 8384.0 | 8384.0 | 1 | In Stock | 26 | Weg | 1060.0 | 8384.0 @ Qty: 1+ |
 | industrialrefrigerationparts.com | 06018XT3E364T | 8571.44 | 8571.44 | 1 | In Stock | WEG | 8571.44 @ Qty: 1+ | ||
| AmazonTP | B007IC11MO | 8817.42 | 8817.42 | 1 | In Stock | 2 | WEG | 8817.42 @ Qty: 1+ | ||
| kscdirect.com | WEG 06018XT3E364T | 8903.5 | 8903.5 | 1 | In Stock | WEG ELECTRIC CORP | 8903.5 @ Qty: 1+ | |||
 | Radwell | 06018XT3E364T | 9400.0 | 9400.0 | 1 | In Stock | WEG | 9400.0 @ Qty: 1+ | ||
 | Purvis | 06018XT3E364T | 9560.44 | 9560.44 | 1 | In Stock | WEG | 9560.44 @ Qty: 1+ | ||
 | Dealers Electric | 06018XT3E364T | 10385.06 | 10385.06 | 1 | In Stock | Weg | 1107.0 | 10385.06 @ Qty: 1+ | |
 | sustainablesupply.com | C3008327 | 13354.23 | 13354.23 | 1 | In Stock | WEG | 1060.0 | 13354.23 @ Qty: 1+ | |
 | National Supply Network | B880929 | 13934.35 | 13934.35 | 1 | In Stock | Weg Electric Motors | 13934.35 @ Qty: 1+ | ||
 | Raptor Supplies | AE2NPM | 16468.3423125 | 16468.3423125 | 1 | In Stock | WEG | 16468.3423125 @ Qty: 1+ |
