| CC Number | CC029A |
| Conduit Box Location | Exterior |
| Country of Origin (subject to change) | Multiple |
| Duty, Duty Cycle | Continuous |
| Frame | 364T |
| Frame Material, Motor Frame Material | Cast Iron |
| Full Load Amps | 137.0/68.3 |
| Green Certification or Other Recognition | NEMA Premium Rated |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Hazardous Location Class | 1 C,D / 2 F,G |
| Hazardous Location Division | Division 1 |
| HP, Hz | 60 |
| Ins. Class | F |

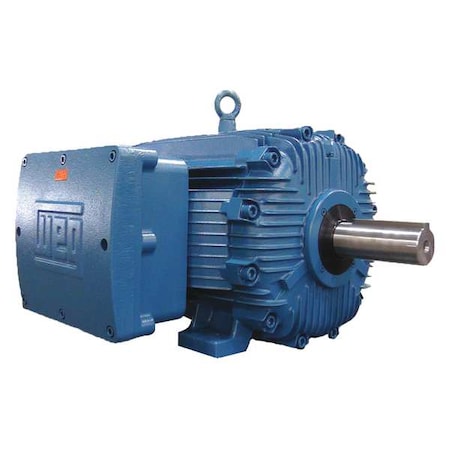

| Item | Hazardous Location Motor |
| Length Less Shaft | 27 13/16 in |
| Manufacturers Warranty Length | 3 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | T-Stat |
| Nameplate RPM | 1,780 |
| NEMA Design | B |
| No. of Speeds | 1 |
| Nominal Efficiency | 95 % |
| Overall Length | 33 11/16 in |
| Phase | Three |
| RPM Range | 1,701-1,800 |
| Shaft Dia. | 2 3/8 in |
| Shaft Length | 5 7/8 in |
| Standards | CSA Certified (LR50962), UL Listed (E87848) |
| Temp. Code | T3C |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 208-230/460V AC |
| Voltage Compatibility | 208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC |
| Weight | 210 lb |
