WEG 10036ET3E405TS-W22

B0085B47PK

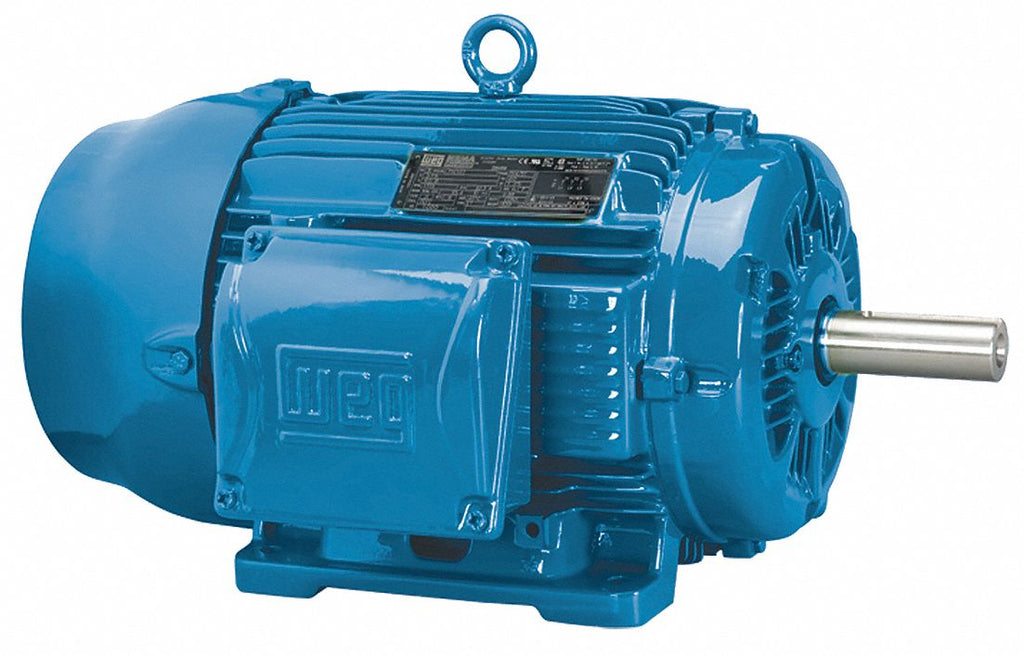

WEG 10036ET3E405TS-W22 NEMA Premium Efficiency Severe Duty and General Purpose Electric Motor, Ball Bearings, 100 HP, 3-Phase, 3545 rpm, 208-230/460 V, 60 Hz, Frame 404/5TS

WEG 10036ET3E405TS-W22 NEMA Premium Efficiency Severe Duty and General Purpose Electric Motor, Ball Bearings, 100 HP, 3-Phase, 3545 rpm, 208-230/460 V, 60 Hz, Frame 404/5TSzoom

Attributes

Key Value
Amperage Rating243 to 220/110 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
CC NumberCC029A
ClassificationThree Phase
CompositionCast Iron
ConditionNew
Constant Torque Speed R.20:1
ConstructionCast Iron
Country of Origin (subj.Multiple
Coupling**Please Specify Coupli.
Degree of ProtectionIP55
Description:MOTOR 100HP 2P 404/5TS .
Dimensions36.732 in L
Drive End Flange TypeStandard
DutyContinuous
duty / condition type:Continuous Duty
Duty CycleContinuous
Efficiency %94.1 %
EnclosureTEFC, IC411 -TEFC, Tota.
Enclosure TypeTotally Enclosed Fan Co.
enclosure type:TEFC (Totally Enclosed .
Estimated Weight1193.00
Family SeriesWEG Electric Motors
FL Amps110
FL Efficiency94.1
FlangesWithout Flanges
Footnotes2
Frame404/5TS, 404TS, 405TS
Frame MaterialCast Iron
frame material:Cast Iron
Frame RemarksFooted
frame size:404/5TS
Frequency60 Hz
Frequency Rating60 Hz
frequency rating:50/60 Hz
Full Load Amps220.0/110.0
Full Load Amps @ 50Hz126.0, 132.0, 138.0, 92.
full load current:110.00 A
full load efficiency:94.10 %
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
harmonization code:8501.53.8040
Hertz60
Horsepower100 hp
HP100
HP @ 50Hz75, 100
Hz60
Ins. ClassF
Insulation ClassClass F
insulation class:F
ip rating:55
ItemGeneral Purpose Motor
Item ConditionFactory New
Item Number10036ET3E405TS-W22
Length Less Shaft32 1/2 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number10036ET3E405TS-W22
Manufacturers Warranty .3 yr
MaterialCast Iron
Max. Ambient Temp.40 Degrees C
MFG Part #:10036ET3E405TS-W22
Model11165996
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
motor horsepower:100 hp
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
motor phase:3 ph
Motor Service Factor1.25
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
motor supply voltage:190/380//208-230/460 V
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFooted, Foot Mount
mounting type:Footed
Nameplate RPM3,555
NEMA DesignB
NEMA Frame404/5TS
Net Weight1361 lbs
No. of Speeds1
Nominal Efficiency94.1 %
Nominal Voltage208 VAC
Number of Poles2
Number of Speeds1
Output Rating100 hp
Overall Length36 3/4 in
overall length (c-dimen.36.73 in
Part Number10036ET3E405TS-W22
Phase3, 3 ph, Three
Product TypeGeneral Purpose
RotationCW/CCW
RPM3545, 3600, 3,600 RPM
RPM @ 50Hz2,960
RPM Group3001-3600
RPM Range3,001-3,600
Service Factor1.25
Service Factor @ 50Hz1
service factor:1.25
Shaft Dia.2 1/8 in
Shaft Length4 1/4 in
Shaft Size2-1/8 in Dia x 4-1/4 in.
Speed (RPM)3600
StandardNEMA MG-1
StandardsCE, CSA, NOM, UL
standards met:UL, CSA, CE
Supplier:WEG ELECTRIC CORP
synchronous rpm:3600 rpm
Synchronous Speed3600 rpm
Terminal BoxLeft position
UPC:7890355674130
Usable @ 200VNo
Usable @ 208VYes
Voltage230/460//380 V, 230/460.
Voltage (AC)208 VAC
Voltage @ 50Hz380V AC, 400V AC, 415V .
Voltage Compatibility200-230/440V AC, 200-23.
Volts208/230/460
volts @ frequency:190 V @ 50 Hz; 380 V @ .
Weight1191.080000, 1,105 lb
weight:1193 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com10036ET3E405TS-W226334.01In StockWEG1105.06334.0 @ 1
thumbzoommotorsandcontrol.com10036ET3E405TS-W228900.171In StockWEG Electric1193.08900.17 @ 1
thumbzoomWalker Industrial10036ET3E405TS-W229001.51In Stock17WEG9001.5 @ 1
kscdirect.comWEG 10036ET3E405TS-W229217.211In StockWEG ELECTRIC CORP9217.21 @ 1
thumbzoomZoroG98595079651.51In Stock26Weg1045.09651.5 @ 1
thumbzoomindustrialrefrigerationparts.com10036ET3E405TS-W229835.031In StockWEG1191.089835.03 @ 1
thumbzoomGalco10036ET3E405TS-W22-WEG9857.641In StockWEG Electric1361.09857.64 @ 1
AmazonTPB0085B47PK10091.681In Stock2WEG10091.68 @ 1
thumbzoommotionindustries.com0470233410153.521In StockWEG Electric Corporation10153.52 @ 1
thumbzoomRadwell10036ET3E405TS-W2210800.01In StockWEG10800.0 @ 1
thumbzoomDealers Electric10036ET3E405TS-W2210957.941In StockWeg1193.010957.94 @ 1
thumbzoomPurvis10036ET3E405TS-W2210969.831In StockWEG10969.83 @ 1
thumbzoomvfds.com10036ET3E405TS-W2212002.01In StockWEG12002.0 @ 1
thumbzoomsustainablesupply.comC149279514321.141In StockWEG1045.014321.14 @ 1
thumbzoomNational Supply NetworkB87330714847.991In StockWeg Electric Motors14847.99 @ 1
thumbzoomRaptor SuppliesAE7TWU16410.9440431In StockWEG16410.944043 @ 1
