Weg Electric 30018OT3H447/9TSD-W4

B07BQDR52H

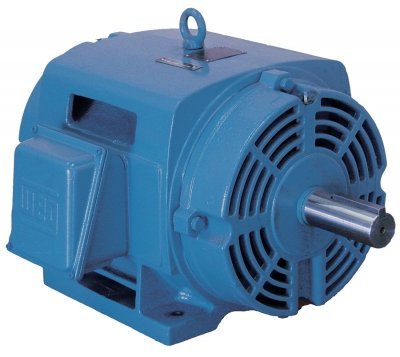

WEG Electric 30018OT3H447/9TSD-W4, 300HP, 1800 RPM, 3PH, 575V, 447/9TSD Frame, B5-D-Flange Flange, Foot Mount, Open, General Purpose Motor

WEG Electric 30018OT3H447/9TSD-W4, 300HP, 1800 RPM, 3PH, 575V, 447/9TSD Frame, B5-D-Flange Flange, Foot Mount, Open, General Purpose Motorzoom

Attributes

Key Value
Amperage Rating259 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
ClassificationODP-Nema Pr.
CompositionCast Iron
ConditionNew
ConstructionCast Iron
Description:MOTOR 300HP 4P 447/9TSD.
Dimensions42.959 in L
Drive End Flange TypeB5-D-Flange
Efficiency %95.8 %
EnclosureODP, Open, IC01 - ODP, .
Enclosure TypeOpen Drip-Proof
Estimated Weight2135.00
Family SeriesWEG Electric Motors
FL Amps259
FL Efficiency95.8
FlangesFlange C
Frame449TSD, 447TSD, 447/9TS.
Frame RemarksFooted
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower300 hp
HP300
Hz60
Insulation ClassClass F
Item ConditionFactory New
Item Number30018OT3H447/9TSD-W4
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number30018OT3H447/9TSD-W4
MaterialCast Iron
MFG Part #:30018OT3H447/9TSD-W4
Model13570826
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, Footed
NEMA Frame447/9TSD
Net Weight0 lbs
Nominal Voltage575 VAC, 600 VAC
Number of Poles4
Number of Speeds1
Output Rating15 HP
Part Number30018OT3H447/9TSD-W4
Phase3, 3 ph
Product TypeGeneral Purpose
RotationCW/CCW
RPM1,800 RPM, 1800
Service Factor1.15
Speed1780 rpm
Speed (RPM)1800
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800 rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
Torque Rating873 ft-lb
UPC:7909322446233
Voltage575 V, 575V, 575
Voltage (AC)575 VAC
Volts575
Weight2140.230000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply574000718648.861In StockWEG18648.86 @ 1
thumbzoomWalker Industrial30018OT3H447/9TSD-W419299.751In Stock17WEG19299.75 @ 1
thumbzoommotorsandcontrol.com30018OT3H447/9TSD-W420388.961In StockWEG Electric2135.020388.96 @ 1
thumbzoomindustrialrefrigerationparts.com30018OT3H447/9TSD-W421086.881In StockWEG2140.2321086.88 @ 1
thumbzoomGalco30018OT3H447/9TSD-W4-WEG21135.371In StockWEG Electric21135.37 @ 1
kscdirect.comWEG 30018OT3H447/9TSD-W421903.791In StockWEG ELECTRIC CORP21903.79 @ 1
thumbzoomDealers Electric30018OT3H447/9TSD-W423494.461In StockWeg2000.023494.46 @ 1
