Weg Electric 35018ET3G449T-W22

B07BQFH2QQ

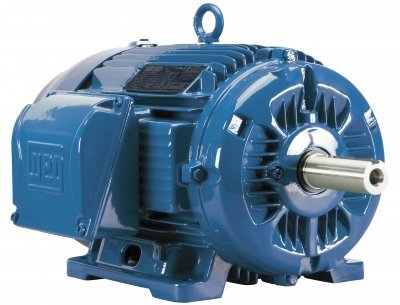

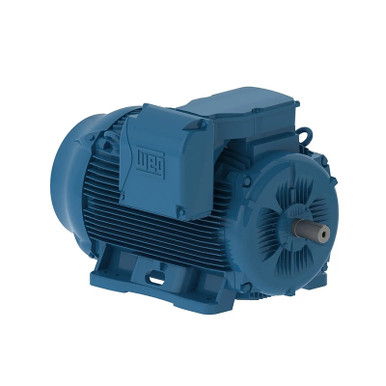

WEG Electric, 35018ET3G449T-W22, 350HP, 1800RPM, 3PH, 460V, 447/9T Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motor.

WEG Electric, 35018ET3G449T-W22, 350HP, 1800RPM, 3PH, 460V, 447/9T Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motor.zoom

Attributes

Key Value
Amperage Rating394 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
ClassificationThree Phase
CompositionCast Iron
ConditionNew
Constant Torque Speed R.20:1
ConstructionCast Iron
Country of Origin (subj.Brazil
Degree of ProtectionIP55
Description:MOTOR 350HP 4P 447/9T W.
Dimensions56.338 in L
Drive End Flange TypeStandard
Efficiency %96.2 %
EnclosureTEFC, IC411-TEFC, Total.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight3152.00
Family SeriesWEG Electric Motors
FL Amps394
FL Efficiency96.2
FlangesWithout Flange
FRAME447/9T
Frame449T, 447T, 447/9T
Frame MaterialCast Iron
Frame RemarksFooted
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps394
Gross Weight0 lbs
Hertz60
Horsepower350 hp
HP350
Hz60
Insulation ClassClass F
Item ConditionFactory New
Item Number35018ET3G449T-W22
Kw260
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number35018ET3G449T-W22
MaterialCast Iron
MFG Part #:35018ET3G449T-W22
Model11473721
Motor Enclosure DesignTEFC
Motor Mounting TypeFOOT
Motor Service Factor1.15
MountingFoot Mount, Foot-mounte.
Mounting TypeFooted, Foot Mount
Nameplate RPM1800
NEMA Frame447/9T
Net Weight3328 lbs
Nominal Efficiency96.2
Nominal Voltage480 VAC
Number of Poles4
Number of Speeds1
Output Rating350 hp
Overall Length56.338
Part Number35018ET3G449T-W22
Phase3, 3 ph
Product TypeGeneral Purpose
RotationCW/CCW
RPM1780, 1,800 RPM, 1800
Service Factor1.15
Speed1800 rpm
Speed (RPM)1800
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
UPC:7891327233935
VOLTAGE460
Voltage460V, 460, 460 V
Voltage (AC)460 VAC
Volts460
WEIGHT3168
Weight3215.040000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com35018ET3G449T-W2218758.01In StockWEG3038.018758.0 @ 1
AmazonTPB07BQFH2QQ25433.51In Stock3Weg Electric25433.5 @ 1
thumbzoomWalker Industrial35018ET3G449T-W2227387.751In Stock17WEG27387.75 @ 1
thumbzoommotorsandcontrol.com35018ET3G449T-W2227387.751In StockWEG Electric3152.027387.75 @ 1
kscdirect.comWEG 35018ET3G449T-W2228044.081In StockWEG ELECTRIC CORP28044.08 @ 1
thumbzoomindustrialrefrigerationparts.com35018ET3G449T-W2229923.821In StockWEG3215.0429923.82 @ 1
thumbzoomGalco35018ET3G449T-W22-WEG29992.631In StockWEG Electric3328.029992.63 @ 1
thumbzoomDealers Electric35018ET3G449T-W2230006.311In StockWeg3152.030006.31 @ 1
thumbzoomZoroG50343524530905.241In Stock11Weg3168.030905.24 @ 1
thumbzoomvfds.com35018ET3G449T-W2236517.01In StockWEG36517.0 @ 1
thumbzoomPurvis35018ET3G449T-W2237101.281In StockWEG37101.28 @ 1
thumbzoomNational Supply NetworkB87426242449.191In StockWeg Electric Motors42449.19 @ 1
motionindustries.com0470253646840.371In StockWEG Electric Corporation46840.37 @ 1
