| Accepts Input Control Signal, Digital Readout, Dynamic Braking | Yes |
| Adjustable Acceleration Time, Adjustable Deceleration Time | 0 to 999 sec |
| Application | Centrifugal Pumps, Conveyor Belts, Cutting and Welding Machines, Dryers/Rotary Ovens, Extruders, Fans/Exhausters, Granulators/Pelletizers, Multimotors and Multipumps, Process Dosing Pumps, Roller Tables, Rotary Filters, Stirrers/Mixers, Winding Machines/Uncoiling Machines |
| Control Method, Control Type | Keypad, Remote |
| Country of Origin (subject to change) | Brazil |
| Depth | 8.5 in |
| Display Type | LED |
| Displays | LED Touch Screen |
| Enclosure | Totally Enclosed |
| Enclosure Rating | NEMA 4X |
| For Use With | 3-Phase Squirrel Cage Induction Motor |
| Height | 10.4 in |
| Input Frequency | 50/60 Hz |
| Input Phase AC, Output Phase AC | Three |
| Input Voltage Range | 200V AC to 480V AC |
| Input Voltage, Output Voltage | 480V AC |

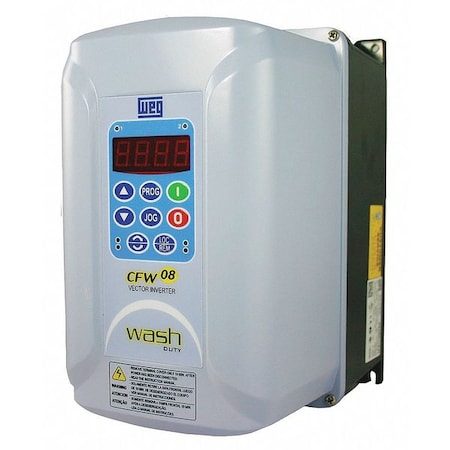

| Item | Variable Frequency Drive |
| Key Pad Lockout | Enclosure Padlock |
| Max. HP, Maximum Output Power | 5 hp |
| Max. Output Amps, Maximum Output Current | 10 A |
| Output Frequency Range | 0 to 300 Hz |
| Output Type | Digital |
| Overall Depth | 8 1/2 in |
| Overall Height | 10 3/8 in |
| Overall Width | 6 1/2 in |
| Protection | DC Bus Over and Under Voltage and External Fault, Drive Over Temperature, Motor Overload, Output Phase-to-Phase and Phase-to-Ground Short Circuit, Over Current |
| Series | CFW-08 |
| Standards | UL, cUL, CE |
| Start/Stop Control | Programmable |
| Starting Torque | 150% |
| Width | 6.5 in |
| With Bypass / No Bypass | No Bypass |
| With Line Contactor / No Line Contactor | No Line Contactor |
