| Accepts Input Control Signal, Digital Readout, Dynamic Braking, Key Pad Lockout | Yes |
| Adjustable Acceleration Time, Adjustable Deceleration Time | 0 to 999 sec. |
| Control Method | Linear and Adjustable V/Hz, Voltage Vector, Sensor less Vector, and Closed Loop Vector |
| Control Type | Keypad/Remote |
| Country of Origin (subject to change) | Brazil |
| Depth | 11.51" |
| Display Type, Displays | LCD |
| Enclosure | NEMA 1 |
| For Use With | 3-Phase Induction Motor |
| Height | 17.64" |
| Input Frequency | 50/60 Hz |
| Input Phase AC, Output Phase AC | 3 |
| Input Voltage, Output Voltage | 480VAC |

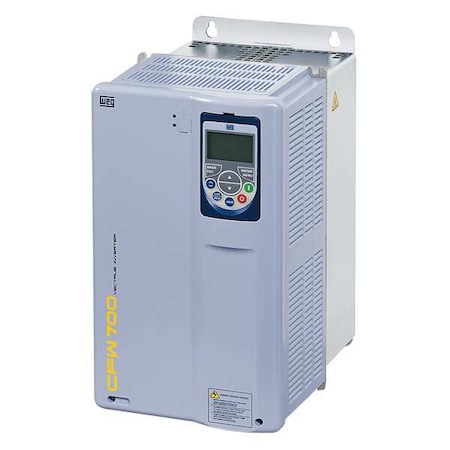

| Item | Variable Frequency Drive |
| Max. HP | 30 |
| Max. Output Amps | 45 |
| Output Frequency Range | 0 to 300 Hz |
| Protection | Overcurrent/Short Circuit, Under/Overvoltage, Phase Loss, VFD Overload, Motor Overload, Braking Resistor Overload, IGBTs Overload, Phase-to Ground Short Circuit at the Output, Motor Over speed |
| Standards | UL, cUL, CE |
| Start/Stop Control | Programmable |
| Starting Torque, Torque @ 1 Hz | 100% |
| Width | 8.66" |
| With Bypass / No Bypass | No Bypass |
| With Line Contactor / No Line Contactor | No Line Contactor |
