Weg Electric E01836XP3YAX160LF3-W

B07CCP6LLD

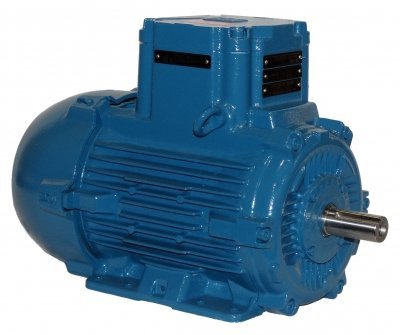

Weg Electric E01836XP3YAX160LF3-W, 25HP, 3600 RPM, 3PH, 460V, 160M/L Frame, Standard Flange, Foot Mount, TEFC, Explosion ProofMotor

Weg Electric E01836XP3YAX160LF3-W, 25HP, 3600 RPM, 3PH, 460V, 160M/L Frame, Standard Flange, Foot Mount, TEFC, Explosion ProofMotorzoom

Attributes

Key Value
Amperage Rating33.2 A
CompositionCast Iron
ConditionNew
Constant Torque Speed R.2:1
ConstructionCast Iron
Degree of ProtectionIP56
Description:MOTOR 18.5kW 2P 160M/L .
Dimensions28.228 in L
Drive End Flange TypeStandard
Efficiency %92.2 %
EnclosureTEFC, XP, IC411 - TEFC,.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight409.00
Explosion Proof RatingClass I Div 1 (Group C,.
Family SeriesWEG Electric Motors
FL Amps33.2
FL Efficiency92.2
FlangesWithout Flanges
Frame160L, 160M/L
Frequency50 Hz
Frequency Rating50/60 Hz
Gross Weight0 lbs
Hertz50, 60
Horsepower25 hp
HP25, 18.5
Hz50
Insulation ClassClass F
Item NumberE01836XP3YAX160LF3-W
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part NumberE01836XP3YAX160LF3-W
MaterialCast Iron
MFG Part #:E01836XP3YAX160LF3-W
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, Footed
NEMA Frame160M/L
Net Weight0 lbs
Nominal Voltage480 VAC
Number of Poles2
Number of Speeds1
Output Rating18.5 kW
Part NumberE01836XP3YAX160LF3-W
Phase3, 3 ph
Product TypeExplosion Proof
RPM3000, 3,600 RPM
Service Factor1
Special FeaturesExplosion Proof AC Moto.
Speed3000/3600 rpm
Speed (RPM)3600
StandardIEC 60034-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed3000 rpm
Terminal BoxTop
TypeFlameproof
UPC:7909158005567
Voltage460V, 380/415/460/660/6.
Voltage (AC)460 VAC
Voltage Rating380/415/660/690/440/460.
Weight479.060000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomWalker IndustrialE01836XP3YAX160LF3-W4436.251In Stock17WEG4436.25 @ 1
thumbzoommotorsandcontrol.comE01836XP3YAX160LF3-W4686.611In StockWEG Electric409.04686.61 @ 1
thumbzoomGalcoE01836XP3YAX160LF3-W-WEG4858.191In StockWEG Electric4858.19 @ 1
thumbzoomindustrialrefrigerationparts.comE01836XP3YAX160LF3-W4919.941In StockWEG479.064919.94 @ 1
kscdirect.comWEG E01836XP3YAX160LF3-W5034.821In StockWEG ELECTRIC CORP5034.82 @ 1
