WEG .5018ES3E56C-S

B019TUVRKI

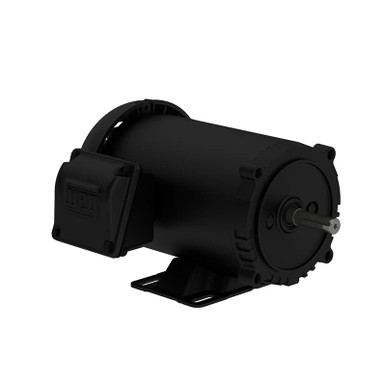

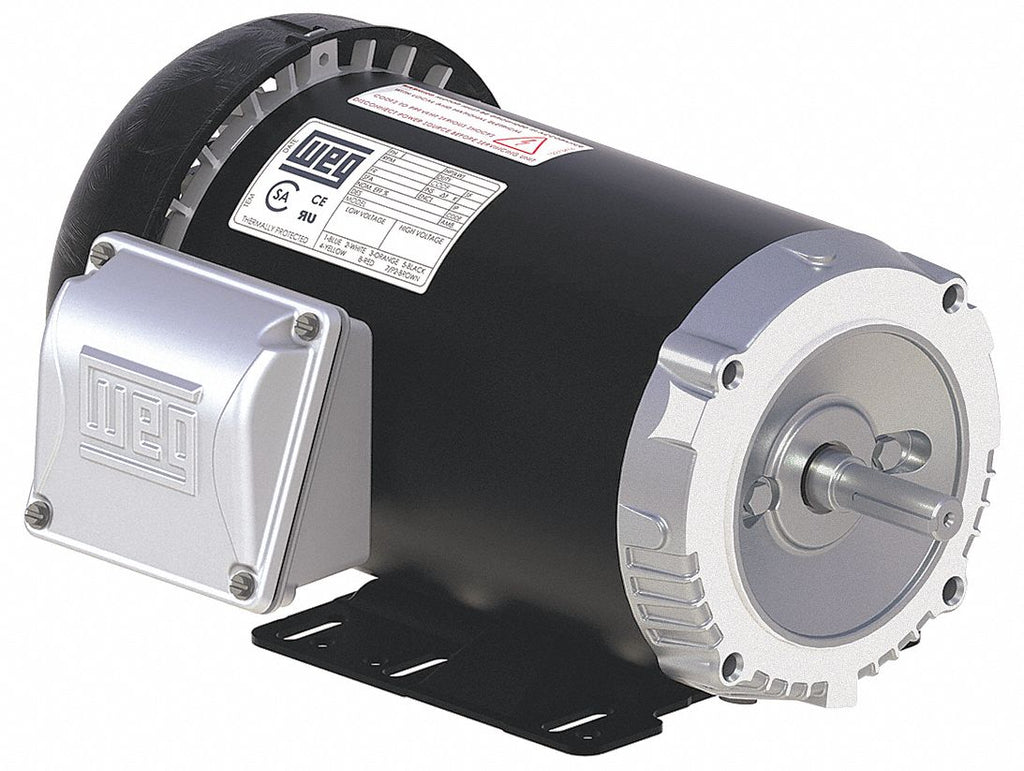

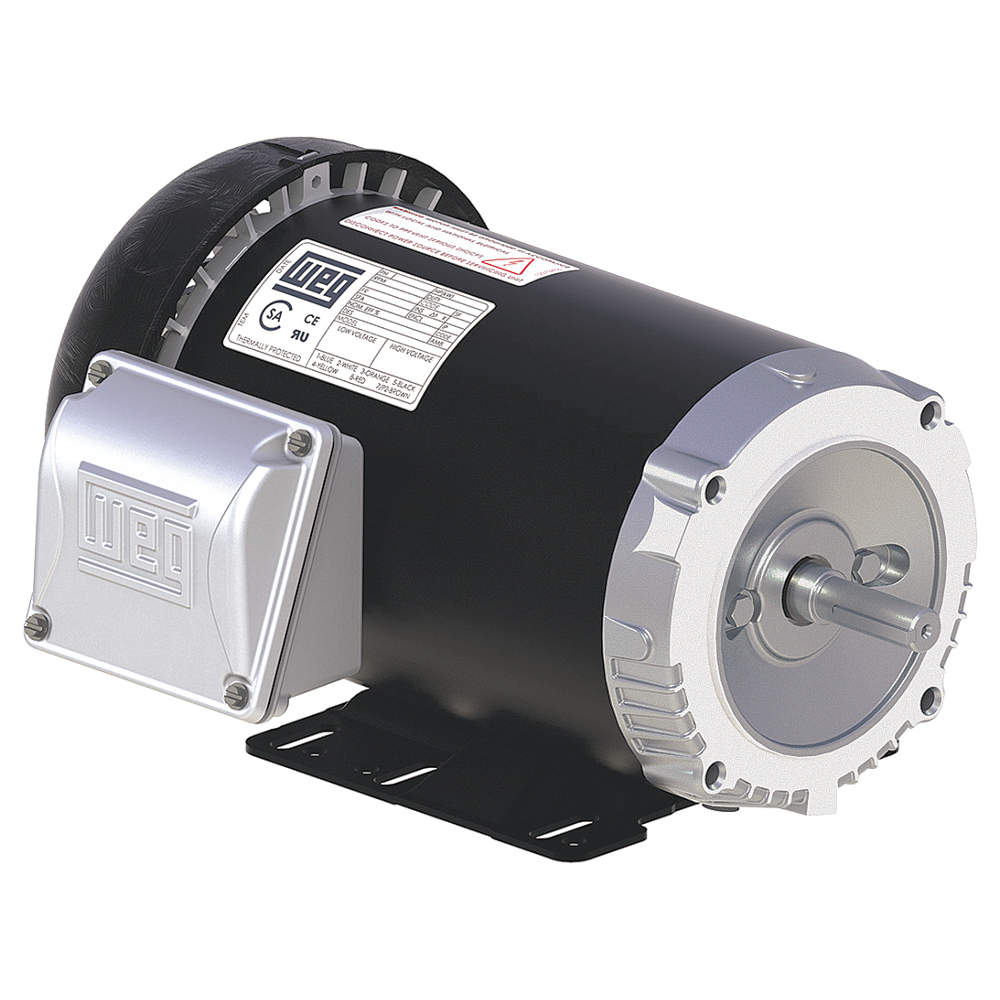

WEG .5018ES3E56C-S TEFC Standard Efficiency Fractional Electric Motor, 1/2 HP, 3-Phase, 1760 RPM, 208-230/460 V, 50/60 Hz, Frame 56C

WEG .5018ES3E56C-S TEFC Standard Efficiency Fractional Electric Motor, 1/2 HP, 3-Phase, 1760 RPM, 208-230/460 V, 50/60 Hz, Frame 56Czoom

Attributes

Key Value
Amperage Rating1.91 to 1.72/0.862 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
ClassificationThree Phase
Comments60 Hz
CompositionSteel
ConstructionRolled Steel
Description:MOTOR 0.5HP 4P 56C WCF2
Dimensions11.535 in L
Drive End Flange TypeC-Face
Efficiency %77 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight26.00
Family SeriesWEG Electric Motors
FL Amps0.86
FL Efficiency77.0
Frame56C
Frame RemarksFooted
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps1.90-1.70/0.86
Gross Weight0 lbs
Hertz60
Horsepower0.5 hp, 1/2 hp
HP0.5, 1/2, .50
Hz60
Insulation ClassClass F
ItemGeneral Purpose Motor
Item ConditionFactory New
Item Number.5018ES3E56C-S
Length Less Shaft9 11/16 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number.5018ES3E56C-S
Manufacturers Warranty .3 yr
MaterialRolled Steel
MFG Part #:.5018ES3E56C-S
Model12895578
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Mounting PositionAll Angle
Motor Mounting TypeFace/Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount
Mounting MethodFlange With Leg
Mounting TypeFoot Mount, C-Face Foot.
Nameplate RPM1,760
NEMA Frame56C
Net Weight0 lbs
Nominal Voltage208 VAC
Number of Speeds1
Overall Length11 9/16 in
Part Number.5018ES3E56C-S
Phase3, 3 ph
Product TypeGeneral Purpose
Replaces.5018ES3E56C-S
RotationCW/CCW
RPM1,800 RPM, 1700 - 1800,.
RPM Range1,701-1,800
Service Factor1.15
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Shaft Size5/8 in Dia x 1-7/8 in L
Speed1760 rpm
Speed (RPM)1800
StandardsCSA, UL
Supplier:WEG ELECTRIC CORP
UPC:7909522446200
Voltage208V, 230V, 460V, 208-2.
Voltage (AC)208 VAC
Voltage Compatibility200-230/440V AC, 200-23.
Volts208/230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMisumi USA.5018ES3E56C-S107.771In StockWEG107.77 @ 1
thumbzoomelectricmotorwholesale.com.5018ES3E56C-S168.01In StockWEG22.2168.0 @ 1
AmazonTPB019TUVRKI202.51In Stock2WEG202.5 @ 1
thumbzoommotorsandcontrol.com.5018ES3E56C-S224.51In StockWEG Electric26.0224.5 @ 1
thumbzoomWalker Industrial5018ES3E56C-S233.251In Stock17WEG233.25 @ 1
thumbzoomZoroG9123581233.251137Weg23.53233.25 @ 1
kscdirect.comWEG .5018ES3E56C-S233.251In StockWEG ELECTRIC CORP233.25 @ 1
thumbzoomAutomation Direct.5018ES3E56C-S234.0115WEG Electric24.03234.0 @ 1
thumbzoomMRO Supply2519223245.621In StockWEG245.62 @ 1
thumbzoomGalco.5018ES3E56C-S-WEG255.441In StockWEG Electric255.44 @ 1
thumbzoomDealers Electric.5018ES3E56C-S268.311In StockWeg26.0268.31 @ 1
thumbzoomvfds.com.5018ES3E56C-S311.01In StockWEG311.0 @ 1
thumbzoomPurvis0.5018ES3E56C-S334.021In StockWEG334.02 @ 1
thumbzoomsustainablesupply.comC1555554350.731In StockWEG23.53350.73 @ 1
Airline HydraulicsWEG .5018ES3E56C-S373.21In StockWEG373.2 @ 1
thumbzoomRaptor SuppliesAG4ZPE432.5261851In StockWEG432.526185 @ 1
