- mpn00118ET3H143TC-W22
- brandname: WEG Electric Corporation
- manufacturername: WEG Electric Corporation

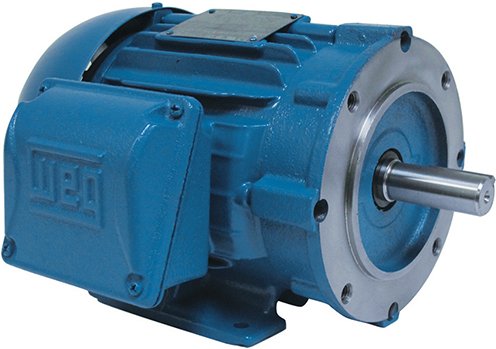

WEG Electric Corporation 00118ET3H143TC-W22 - General Purpose Motor - 3 ph, 1 hp, 1800 rpm, 575 V, 143/5TC Frame, TEFC Enclosure, 60 Hz, C-Face/Foot Mount
- Binding: Misc.
- Manufacturer: WEG Electric Corporation
- Label: WEG Electric Corporation
Attributes
| Key | Value |
|---|
| Amperage Rating | 1.18 A |
| Application Type | General Purpose AC Moto. |
| Bearing Type | Ball |
| Composition | Cast Iron |
| Constant Torque Speed R. | 20:1 |
| Construction | Cast Iron |
| Description: | MOTOR 1HP 4P 143/5TC WF. |
| Dimensions | 13.358 in L |
| Drive End Flange Type | C-Face |
| duty / condition type: | Continuous Duty |
| Efficiency % | 85.5 % |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | Totally Enclosed Fan Co. |
| enclosure type: | TEFC (Totally Enclosed . |
| Estimated Weight | 49.00 |
| Family Series | WEG Electric Motors |
| FL Amps | 1.13 |
| FL Efficiency | 85.5 |
| Frame | 143-5TC, 143TC |
| frame material: | Cast Iron |
| frame size: | 143/5TC |
| Frequency | 60 Hz |
| Frequency Rating | 60 Hz |
| frequency rating: | 60 Hz |
| full load current: | 1.13 A |
| full load efficiency: | 85.50 % |
| Gross Weight | 0 lbs |
| harmonization code: | 8501.51.6040 |
| Hertz | 60 |
| Horsepower | 1 hp |
| HP | 1 |
| Insulation Class | Class F |
| insulation class: | F |
| ip rating: | 55 |
| Item Number | 00118ET3H143TC-W22 |
| Manufacturer | WEG Electric, WEG ELECT. |
| Manufacturer Part Number | 00118ET3H143TC-W22 |
| Material | Cast Iron |
| MFG Part #: | 00118ET3H143TC-W22 |
| motor horsepower: | 1.00 hp, 1 hp |
| motor phase: | 3 ph |
| motor supply voltage: | 575 V |
| Mounting | Foot Mount |
| Mounting Type | Foot Mount, C-Face Foot. |
| mounting type: | Footed/C-Face Flange |
| NEMA Frame | 143TC |
| Net Weight | 0 lbs |
| Nominal Voltage | 575 VAC, 600 VAC |
| Number of Speeds | 1 |
| overall length (c-dimen. | 13.35 in |
| Part Number | 00118ET3H143TC-W22 |
| Phase | 3, 3 ph |
| Product Type | General Purpose |
| Rotation | CW/CCW |
| RPM | 1,800 RPM |
| Service Factor | 1.25 |
| service factor: | 1.25 |
| Shaft Size | 7/8 in Dia x 2-1/4 in L |
| Speed (RPM) | 1800 |
| standards met: | UL, CSA, CE |
| Supplier: | WEG ELECTRIC CORP |
| synchronous rpm: | 1800 rpm |
| UPC: | 7909158051304 |
| Voltage | 575V |
| Voltage (AC) | 575 VAC |
| volts @ frequency: | 575 V @ 60 Hz |
| weight: | 49 lbs |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | motorsandcontrol.com | 00118ET3H143TC-W22 | 416.25 | 1 | In Stock | | WEG Electric | 49.0 | 416.25 @ 1 |
| kscdirect.com | WEG 00118ET3H143TC-W22 | 426.23 | 1 | In Stock | | WEG ELECTRIC CORP | | 426.23 @ 1 |
 | Galco | 00118ET3H143TC-W22-WEG | 455.84 | 1 | In Stock | | WEG Electric | | 455.84 @ 1 |
 | motionindustries.com | 04701576 | 469.53 | 1 | In Stock | | WEG Electric Corporation | | 469.53 @ 1 |
