| Backspacing (in.) | 4.70 |
| Beadlock Functional, Beadlock Included, Center Cap Included, TPMS Sensor Compatible, Valve Stems Included | Yes |
| Brand | Weld Racing |
| Center Bore Diameter (in.) | 3.18 |
| Center Bore Diameter (mm) | 80.77mm |
| Designed for Dually Truck, Hub Centric Ring Compatible, Lug Nuts Included, Small Diameter Lug Nuts Required | No |
| Lug Nut Seat Style | Conical seat - 60 degree |
| Manufacturer's Part Number | 72HB7090W47F |
| Manufacturers Wheel Series | Weld Racing RT-S S72 Series |
| Notes | High brake clearance design. 2.05 in. from the peak of the spoke curvature for brake clearance. Will not accept 5/8 in. drive studs. Wheel includes black anodized single beadlock ring designed for MT bead style. |
| Part Type | Wheels |

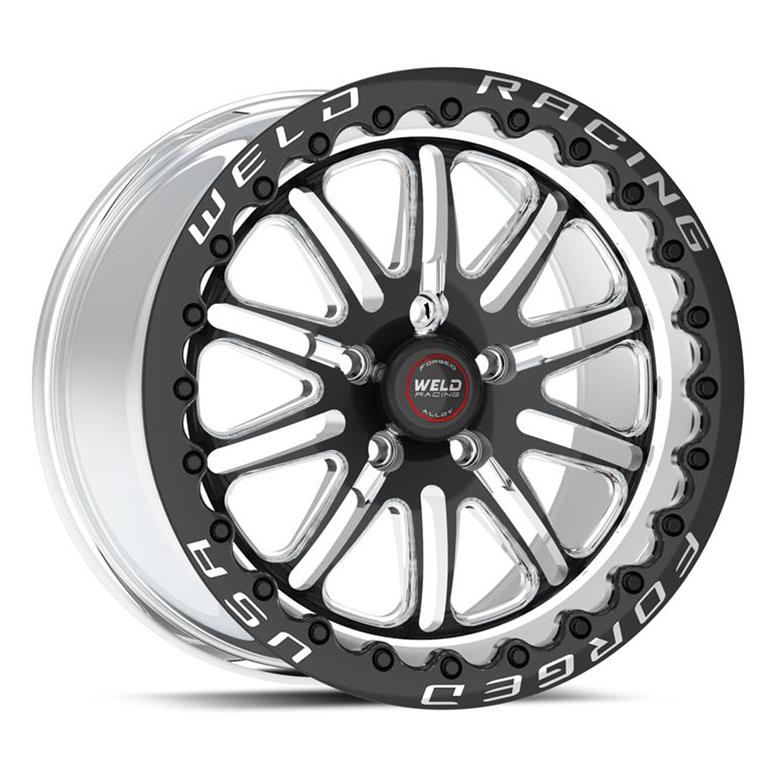

| Product Line | Weld Racing RT-S S72 Forged Aluminum Black Anodized Mickey Thompson Beadlock Wheels |
| Quantity | Sold individually. |
| Summit Racing Part Number | WLD-72HB7090W47F |
| Wheel Bolt Pattern (application) | 5 x 115mm |
| Wheel Construction | 3-piece |
| Wheel Diameter | 17 in. |
| Wheel Material | Forged aluminum |
| Wheel Size | 17x9 |
| Wheel Width (in.) | 9.00 |
