Description:

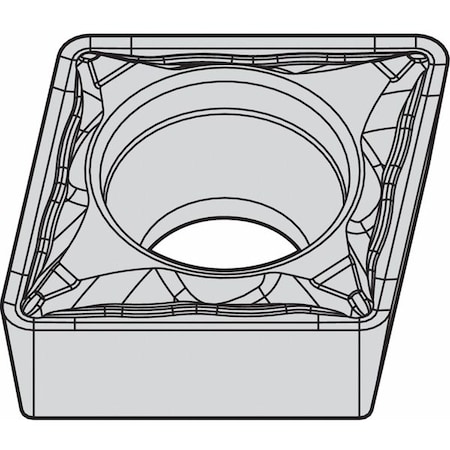

Diamond Turning Insert, Chip-Breaker Code FP, Inscribed Circle 3/8 in, TiN, ANSI Code CCMT32505FP, Chip-Breaker Style On One Side, Clearance Angle 7 Degrees
Attributes
| Key ^ | Value |
|---|---|
| ANSI Number | CCMT32505FP |
| Cast Iron (K) Compatibility | No |
| Chip-Breaker, Stainless (M) Compatibility, Super Alloy (S) Compatibility | Yes |
| Corner Radius | .5 |
| Cutting Edge Length | 9.67mm |
| For Use With | Toolholders, Boring Bars |
| Grade | WM25CT |
| Included Angle | 80 Degrees |
| Inscribed Circle | 3 |
| Insert Application | Finishing |
| Insert Material, Material | Carbide |
| Insert Shape | Diamond |
| Insert Size | 32505 |
| Insert Style | CCMT |
| Insert Thickness | 0.1563" |
| Item | Diamond Turning Insert |
| Mounting Hole Dia. | 0.173" |
| No. of Edges | 2 |
| Nose Radius | 0.008" |
| Relief Angle | 7 Degrees |
| Workpiece Compatibility | Stainless (M), Steel (P), Super Alloy (S) |
