| ANSI Code, ANSI Number, ISO Number | HNPJ0704ANSNHD |
| Cast Iron (K) Compatibility, Chip-Breaker, Wiper Insert | Yes |
| Chip-Breaker Code | HD |
| Chip-Breaker Style | Double Sided |
| Clearance Angle | 0 Degrees |
| Coating Process | CVD |
| Coating, Finish - Machining | Al2O3 |
| Corner Radius | 3/64 in |
| Country of Origin (subject to change) | Germany |
| Cutting Application, Insert Application | Roughing |
| Cutting Direction | Neutral |
| Cutting Edge Length | 6.80mm |
| For Toolholder | M1200HF150Z05S050HN07, M1200HF200Z05S075HN07, M1200HF250Z06S075HN07, M1200HF300Z08S100HN07 |
| For Use With | M1200 Mini Series Face Mills |
| Grade, Manufacturer Grade | WK15CM |
| Hardened (H) Compatibility, Non Ferrous (N) Compatibility, Stainless (M) Compatibility, Steel (P) Compatibility, Super Alloy (S) Compatibility | No |
| Hole Type | 70 Degrees to 90 Degrees Double Countersink Hole |
| Included Angle | 120 Degrees |
| Inscribed Circle | 1/2 in |
| Insert Holding Type, Mounting Style | Screw Clamp |
| Insert Material, Material - Machining | Carbide |
| Insert Shape, Shape | Hexagon |
| Insert Size | 0704 |
| Insert Style | HNPJ |
| Insert Thickness | 0.174" |

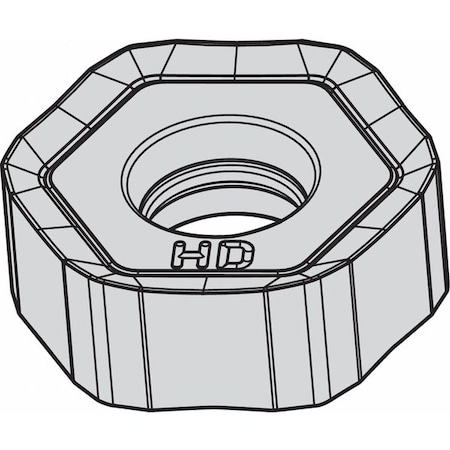

| Item | Hexagon Milling Insert |
| Lead Angle | 13.7 Degrees ANSI, 76.3 Degrees ISO |
| Measurement System | Fractional Inch |
| Mounting Hole Dia., Through Hole Inside Dia. | 0.1970 in |
| No. of Edges, Number of Cutting Edges | 12 |
| Nose Radius | 0.047" |
| Primary Material Application | Cast Iron |
| Primary Material Application ISO Code | K |
| Rake | Positive |
| Series | M1200 |
| Thickness | 0.1735 in |
| Workpiece Compatibility | Cast Iron (K) |
