| ANSI Code, ISO Number | HNPJ0704ANSNHD |
| Chip-Breaker Code | HD |
| Chip-Breaker Style | Double Sided |
| Chip-Breaker, Wiper Insert | Yes |
| Clearance Angle | 0 Degrees |
| Corner Radius | 3/64 in |
| Country of Origin (subject to change) | Germany |
| Cutting Direction | Neutral |
| Cutting Edge Length | 6.80mm |
| Finish - Machining | AlTiN |
| For Toolholder | M1200HF150Z05S050HN07, M1200HF200Z05S075HN07, M1200HF250Z06S075HN07, M1200HF300Z08S100HN07 |
| For Use With | M1200 Mini Series Face Mills |
| Grade, Manufacturer Grade | WS40PM |
| Hole Type | 70 Degrees to 90 Degrees Double Countersink Hole |
| Included Angle | 120 Degrees |
| Inscribed Circle | 1/2 in |
| Insert Holding Type, Mounting Style | Taper Screw |
| Insert Shape, Shape | Hexagon |
| Insert Size | 0704 |
| Insert Style | HNPJ |
| Insert Thickness | 0.1735" |

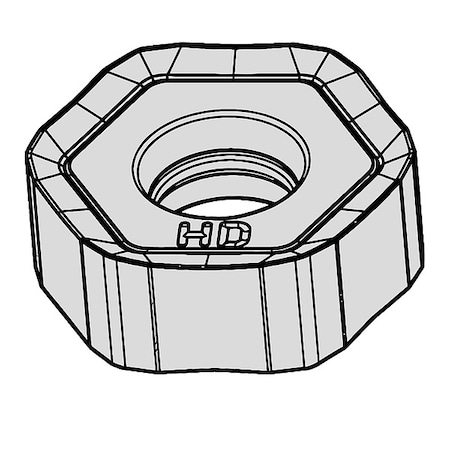

| Item | Hexagon Milling Insert |
| Lead Angle | 13.7 Degrees ANSI, 76.3 Degrees ISO |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Mounting Hole Dia., Through Hole Inside Dia. | 0.1970 in |
| Primary Material Application | Nickel, Stainless Steel, Steel, Titanium |
| Primary Material Application ISO Code | M, P, S |
| Series | M1200 |
| Thickness | 0.1735 in |
