| ANSI Code, ANSI Number | SDMX436RMM |
| Cast Iron (K) Compatibility, Chip-Breaker, Stainless (M) Compatibility, Steel (P) Compatibility, Wiper Insert | Yes |
| Chip-Breaker Code | MM |
| Chip-Breaker Style | On One Side |
| Clearance Angle | 15.3 Degrees |
| Coating Process | CVD |
| Coating, Finish - Machining | Al2O3 |
| Corner Radius | 3/32 in |
| Country of Origin (subject to change) | Germany |
| Cutting Application | Milling |
| Cutting Direction | Right Hand |
| Cutting Edge Length | 12.70mm |
| For Use With | M690 Series 0 Degrees /90 Degrees Shoulder Mills |
| Grade, Manufacturer Grade | TN7535 |
| Hardened (H) Compatibility, Non Ferrous (N) Compatibility, Super Alloy (S) Compatibility | No |
| Included Angle | 90 Degrees |
| Inscribed Circle | 1/2 in |
| Insert Application | Medium |
| Insert Holding Type, Mounting Style | Screw Clamp |
| Insert Material, Material - Machining | Carbide |
| Insert Shape, Shape | Square |
| Insert Size | 436 |
| Insert Style | SDMX |
| Insert Thickness | 0.1875" |
| ISO Number | SDMX120424RMM |

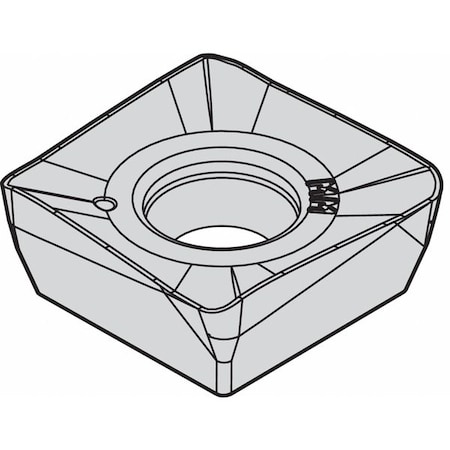

| Item | Square Milling Insert |
| Lead Angle | 90 Degrees |
| Measurement System | Fractional Inch |
| Mounting Hole Dia., Through Hole Inside Dia. | 0.1730 in |
| No. of Edges, Number of Cutting Edges | 4 |
| Nose Radius | 0.095" |
| Primary Material Application | Steel |
| Primary Material Application ISO Code | P |
| Rake | Positive |
| Secondary Material Application | Cast Iron, Stainless Steel |
| Secondary Material Application ISO Code | K, M |
| Series | M690 |
| Thickness | 0.1875 in |
| Workpiece Compatibility | Cast Iron (K), Stainless (M), Steel (P) |
