| ANSI Code, ANSI Number | SNG452T0820 |
| ANSI Project - Inscribed Circle | 4 |
| Cast Iron (K) Compatibility | Yes |
| Chip-Breaker, Hardened (H) Compatibility, Non Ferrous (N) Compatibility, Stainless (M) Compatibility, Steel (P) Compatibility, Super Alloy (S) Compatibility | No |
| Clearance Angle | 0 Degrees |
| Coating | Uncoated |
| Corner Radius | 1/32 in |
| Country of Origin (subject to change) | Germany |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 12.70mm |
| Finish - Machining | Bright (Uncoated) |
| For Use With | Toolholders, Boring Bars |
| Grade, Manufacturer Grade | CW2015 |
| Included Angle | 90 Degrees |
| Inscribed Circle | 1/2 in |
| Insert Application | Medium |
| Insert Code | SNG4452 |
| Insert Holding Type | No Screw Hole |
| Insert Material, Material, Material - Machining | Ceramic |
| Insert Shape, Shape | Square |
| Insert Size | 452 |
| Insert Style | SNG4 |
| Insert Thickness | 0.3125" |
| ISO Number | SNGN120708T02020 |

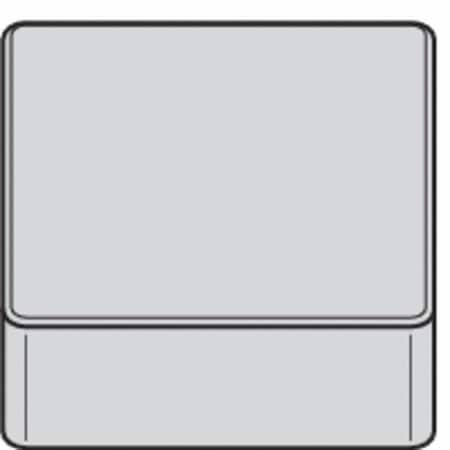

| Item | Square Turning Insert |
| Material Grade - Machining | Alumina Ceramic |
| Measurement System | Fractional Inch |
| Mounting Style | Clamp |
| No. of Edges, Number of Cutting Edges | 8 |
| Nose Radius | 0.031" |
| Primary Material Application | Cast Iron, Hardened Steel |
| Primary Material Application ISO Code | H, K |
| Rake | Negative |
| Relief Angle | 0 Degrees |
| Thickness | 5 |
| Workpiece Compatibility | Cast Iron (K) |
