| ANSI Code | TDMX0749R3SL100 |
| Body Length | 50.00mm |
| Coolant Fed | Coolant Through |
| Country of Origin (subject to change) | Germany |
| Cutting Direction | Right Hand |
| Depth x Dia. Ratio | 3xD |
| Diameter | 25.40mm |
| Drilling Application | Cross-Hole Drilling;Inclined Entry Drilling;Inclined Exit Drilling;Stacked Plates Drilling |
| Flanged Shank | Yes |
| Flute Length | 60.00mm |
| Flute Type | Spiral |
| Insert Style | TDMX |
| ISO Number | TDMX0749R3SL100 |

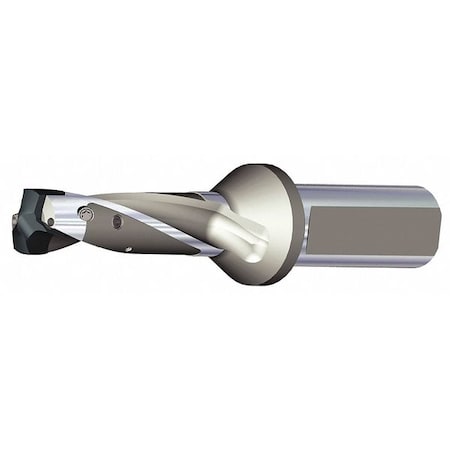

| Item | Exchangeable Drill Tip |
| Material - Machining | High Speed Steel |
| Max. Dia. | 19.9990mm |
| Max. Drill Dia. | 60.00mm |
| Max. Drilling Depth | 20.00mm |
| Min. Drill Dia. | 19.00mm |
| Overall Length | 5.9449 in |
| Seat Size | D |
| Shank Dia. | 1 in |
| Shank Dia. Measurement System | Fractional Inch |
| Shank Length | 1.9685 in |
| Shank Type - Machining | Round with Flat and Side Lock |
| Spiral Direction | Right Hand |
| Toolholder Style | TDMX |
