| Application | Metalworking |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Country of Origin (subject to change) | Germany |
| Cutting Direction, Spiral Direction | Right Hand |
| Decimal Equivalent | 0.1535 |
| Depth x Dia. Ratio, Depth:Dia. Ratio | 5xD |
| Drill Bit Dimension Type, Measurement System | Metric |
| Drill Bit Finish, Finish | Black and Gold Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material, Material, Material - Machining | Carbide |
| Drill Bit Point Angle | 140 Degrees |
| Drill Bit Point Type, Point Type | TDS Point |
| Drill Bit Size | 3.90 mm |
| Drill Diameter Tolerance | M7 |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.6400mm |
| Drilling Depth | 29.00mm |
| Finish - Machining | AlTiN |
| Flute Length, Shank Length | 36.00 mm |
| Flute Type | Spiral |
| Grade, Material Grade - Machining | WM15PD |
| Helix Angle | 29 Degrees |

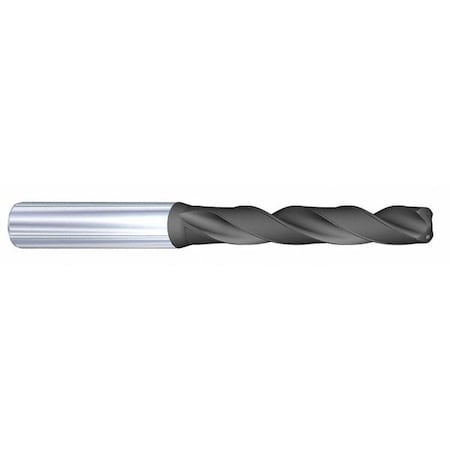

| Item | Jobber Length Drill Bit |
| List Number, Series | TDS452 |
| Maximum Drilling Depth | 29.00 mm |
| Number of Coolant Holes, Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 74.00 mm |
| Primary Material Application | Stainless Steel |
| Primary Material Application ISO Code | M |
| Shank Dia. | 6.00 mm |
| Shank Type, Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Standards | ANSI, ISO |
