- mpnTNMG4324P TN30M
- brandname: WIDIA
- manufacturername: WIDIA

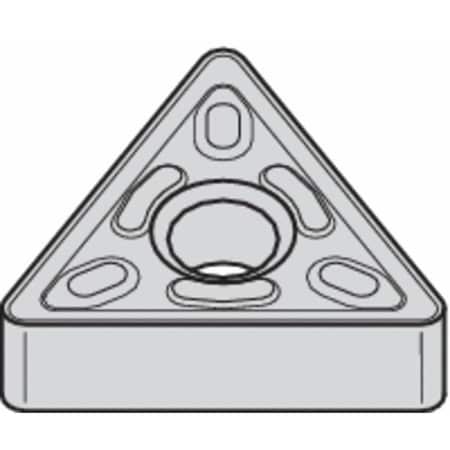

WIDIA TNMG4324P TN30M VariTurn TNMG-4P General Performance Turning Inserts, 0.0312"/0.8 mm Radius, Medium Turning, Grade TN30M (Pack of 10)
- Brand: WIDIA
- PartNumber: TNMG4324P TN30M
- Model: TNMG4324P TN30M
- Size: 0.375
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: WIDIA Products Group
- Label: WIDIA Products Group
Attributes
| Key | Value |
|---|
| ANSI Code | TNMG4324P |
| ANSI Number | TNMG4324P |
| Cast Iron (K) Compatibi. | No |
| Chip-Breaker | Yes |
| Chip-Breaker Code | 4P |
| Chip-Breaker Style | Double Sided |
| Clearance Angle | 0 Degrees |
| Coating | Uncoated |
| Coating Process | CVD |
| Corner Radius | 1/32 in, 0.0312 in |
| Country of Origin (subj. | United States |
| Cutting Application | Outside and Inside Diam. |
| Cutting Direction | Neutral |
| Cutting Edge Length | 22.00mm, 22 mm |
| Finish - Machining | Bright (Uncoated) |
| For Use With | Toolholders, Boring Bars |
| Grade | TN30M |
| Hardened (H) Compatibil. | No |
| Included Angle | 60 Degrees |
| Inscribed Circle | 0.5000", 1/2 in |
| Insert Application | Medium |
| Insert Code | TNMG432 |
| Insert Holding Type | Straight Hole |
| Insert Material | Carbide |
| Insert Shape | Triangle |
| Insert Size | 432 |
| Insert Style | TNMG |
| Insert Thickness | 0.1875" |
| ISO Number | TNMG2204084P |
| Item | Triangle Turning Insert |
| Manufacturer Grade | TN30M |
| Material | Carbide |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.203" |
| Mounting Style | Clamp |
| No. of Edges | 6 |
| Non Ferrous (N) Compati. | No |
| Nose Radius | 0.031" |
| Number of Cutting Edges | 6 |
| Primary Material Applic. | Stainless Steel |
| Primary Material Applic. | M |
| Rake | Negative |
| Relief Angle | 0 Degrees |
| Seat Size | 432 |
| Secondary Material Appl. | Nickel, Steel, Titanium |
| Secondary Material Appl. | P, S |
| Shape | Triangle |
| Stainless (M) Compatibi. | Yes |
| Steel (P) Compatibility | Yes |
| Super Alloy (S) Compati. | Yes |
| Thickness | 3, 3/16 in |
| Through Hole Inside Dia. | 0.203 in, 0.2030 in |
| Workpiece Compatibility | Stainless (M), Steel (P. |
