- mpnVDS402A08433
- brandname: Widia
- manufacturername: Widia

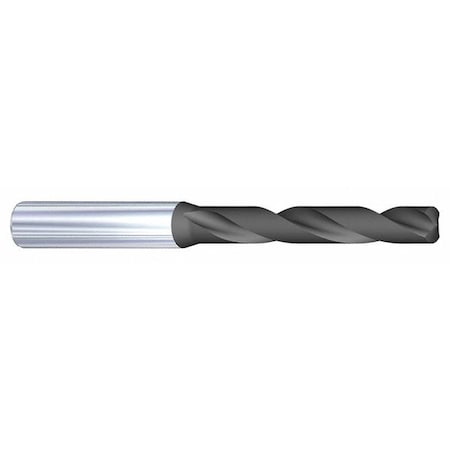

WIDIA VDS402A08433 VariDrill VDS402A, 0.332" Diameter, 140? Cutting Angle, Right Hand Cut, Cone Point, Carbide, TiAlN Coating
- Brand: WIDIA
- PartNumber: 4143083
- Model: 4143083
- Size: 0.332" Diameter - 140? Cutting Angle
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: WIDIA Products Group
- Label: WIDIA Products Group
Attributes
| Key | Value |
|---|
| Catalog Page | N/A |
| Coolant Fed | Coolant Through |
| Country of Origin | Germany |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.3320, 0.332 |
| Depth x Dia. Ratio | 5xD |
| Depth:Dia. Ratio | 5xD |
| Double Margin | No Margins |
| Drill Bit Dimension Type | Letter |
| Drill Bit Finish | TiAlN |
| Drill Bit Grouping | Drill Bit, Individual |
| Drill Bit Material | Carbide |
| Drill Bit Point Angle | 140 Degrees, 140 Degre. |
| Drill Bit Point Type | Conical Point |
| Drill Bit Size | Q, 8.4330mm |
| Drill Diameter Tolerance | H7 |
| Drill Length Class | Jobber Length |
| Drill Point Length | 1.4300mm |
| Drilling Depth | 49.00mm |
| Finish - Machining | TiAlN |
| Flute Length | 61.00mm, 61.00 mm |
| Flute Type | Helical |
| Helix Angle | 27 Degrees, 27? |
| Item | Jobber Length Drill Bit |
| Item? | 432A35 |
| List Number | VDS402 |
| Material | Carbide |
| Material - Machining | Carbide |
| Material Grade - Machin. | WU25PD |
| Maximum Drilling Depth | 49 mm, 49.00mm |
| Measurement System | Metric, Letter |
| Mfr. Model? | VDS402A08433 |
| Number of Coolant Holes | 2 |
| Number of Flutes | 2 |
| Overall Length | 103.00mm, 103.00 mm |
| Primary Material Applic. | Aluminum; Cast Iron; Ni. |
| Primary Material Applic. | K; M; N; P; S, K, M, N,. |
| Series | VDS402 |
| Shank Dia. | 10.00mm, 10.00 mm |
| Shank Diameter | 10 mm |
| Shank Length | 40.00 mm, 40.00mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| Standards | ANSI; DIN 6535; DIN 653. |
| UNSPSC | 27112801 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2748230 | 103.99 | 1 | 1 | | Widia | 0.16 | 103.99 @ 1 |
| grainger.ca | WIDVDS402A08433 | 148.8663254 | 1 | In Stock | | WIDIA | 0.158 | 148.8663254 @ 1 |
| Grainger | 432A35 | 153.77 | 1 | In Stock | | WIDIA | | 153.77 @ 1 |
