| ANSI Code, ISO Number | VSM490D200Z07S075XN10 |
| Arbor Dia. | 3/4 in |
| Compatible Hardware | 3/8"-24 x 1 in Socket Head Cap Screw, Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP9, Screw 3/8"-24 x 1 in LG Coolant G |
| Coolant Fed | Coolant Through |
| Country of Origin (subject to change) | Germany |
| Cutting Application | Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End |
| Cutting Direction | Right Hand |
| Depth of Cut | 10.00mm |
| Features | Best-in-Class Wall Finish in Axial Stepping-Down Jobs, Coarse, Lower Cutting Forces and Real Soft Cutting Action, Medium and Fine Pitch Cutter Density Available, Perfect Fit for Taper 40 Spindles and Driven Units, True 0 Degrees Roughing Tool with Imbedded Finishing Capability All in One Tool |
| Hub Outside Dia. | 1-3/4 in |
| Insert Holding Type | Screw |
| Insert Shape | 90 Degrees Rectangle Mill 4 |
| Insert Size | 100408 |
| Insert Style | XNGU SRMM |

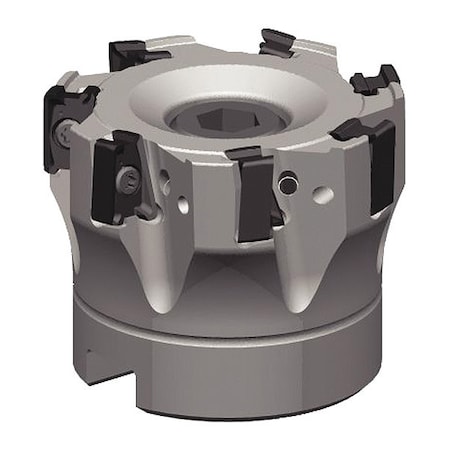

| Item | Indexable Face Mill |
| Material, Material - Machining | High Speed Steel |
| Max. Speed | 22,100 RPM |
| Number of Flutes, Number of Inserts | 7 |
| Overall Length | 40.05mm |
| Rake | -12.8 Degrees Radial, -8 Degrees Axial |
| Series | VSM490-10 |
| Side Cutting Edge Angle | 0 Degrees |
| Type | Face Mill |
