| ANSI Code, ISO Number | WG255I06U1PT |
| Application, Cutting Application | Grooving |
| Chip-Breaker | Yes |
| Chip-Breaker Code | PT |
| Chip-Breaker Style | On One Side |
| Clearance Angle, Lead Angle | 10.5 Degrees |
| Coating Process | PVD |
| Coating, Finish - Machining | AlTiN |
| Corner Radius | 0.0160 in |
| Country of Origin (subject to change) | Germany |
| Cutting Direction | Neutral |
| Depth of Cut | 0.1020 in |
| Grade, Manufacturer Grade | WU25PT |
| Hole Type | No Hole |
| Insert Material, Material - Machining | Carbide |
| Insert Seat Size, Insert Size, Seat Size | 6 |

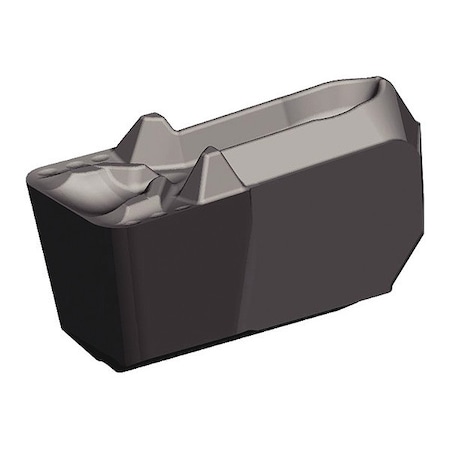

| Item | Parting and Grooving Insert |
| Max. Grooving Width | 0.2550 in |
| Measurement System | Fractional Inch |
| No. of Edges, Number of Cutting Edges | 1 |
| Overall Length, Reference Length | 0.5740 in |
| Primary Material Application | Nickel, Titanium |
| Primary Material Application ISO Code | S |
| Style | Precision Molded |
| Thickness | 0.2010 in |
| Width | 0.2120 in |
| Workpiece Compatibility | Cast Iron (K), Composites (O), Hardened (H), Stainless (M), Steel (P), Super Alloy (S) |
