| ANSI Code | WMTS250I6P03PH |
| Application | Grooving |
| Chip-Breaker | Yes |
| Chip-Breaker Code | PH |
| Chip-Breaker Style | On One Side |
| Clearance Angle | 5 Degrees |
| Coating | AlTiN |
| Coating Process | PVD |
| Corner Radius | 0.0100 in |
| Country of Origin (subject to change) | Germany |
| Cutting Application | Grooving, Turning |
| Cutting Direction | Neutral |
| Finish - Machining | AlTiN |
| Grade | WU10PT |
| Hole Type | No Hole |
| Insert Material | Carbide |
| Insert Seat Size | 6 |
| Insert Size | 6 |
| ISO Number | WMTS250I6P03PH |
| Item | Parting and Grooving Insert |
| Lead Angle | 5 Degrees |
| Manufacturer Grade | WU10PT |
| Material - Machining | Carbide |
| Max. Grooving Width | 1/4 in |
| Measurement System | Fractional Inch |
| Mounting Style | Convex Prismatic Cross Section |
| No. of Edges | 2 |
| Number of Cutting Edges | 2 |

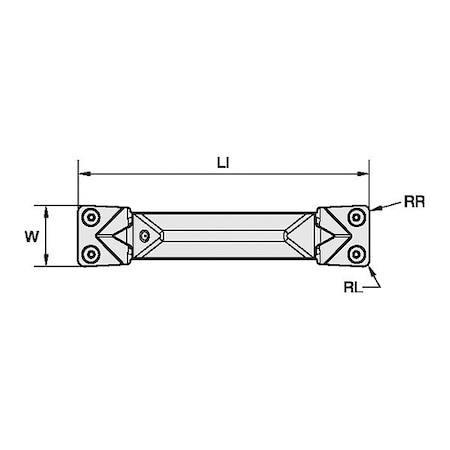

| Overall Length | 1.1270 in |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Magnesium, Nickel, Stainless Steel, Titanium |
| Primary Material Application ISO Code | M, N, S |
| Reference Length | 1.1270 in |
| Seat Size | 6 |
| Secondary Material Application | Cast Iron, Hardened Steel, Steel |
| Secondary Material Application ISO Code | H, K, P |
| Style | WMT |
| Thickness | 0.2390 in |
| Width | 0.1800 in |
