| ANSI Code | XDCT1104RALP |
| Cast Iron (K) Compatibility, Hardened (H) Compatibility, Stainless (M) Compatibility, Steel (P) Compatibility, Super Alloy (S) Compatibility | No |
| Chip-Breaker Code | ALP |
| Chip-Breaker Style | On One Side |
| Chip-Breaker, Non Ferrous (N) Compatibility, Wiper Insert | Yes |
| Clearance Angle | 15 Degrees |
| Corner Radius | 1.60mm |
| Country of Origin (subject to change) | United States |
| Cutting Direction | Right Hand |
| Cutting Edge Length | 11.73mm |
| Features | ALP is the First Choice for Roughing and Finishing of Aluminium Alloy |
| Finish - Machining | Bright (Uncoated) |
| For Toolholder | VHM11D100Z02W225XD11, VHM11D150Z05S250XD11, VHM11D200Z04S300XD11, VHM11D200Z06S300XD11, VSM11D150Z04S075XD11, VSM11D150Z06S075XD11, VSM11D200Z05S075XD11, VSM11D200Z08S075XD11, VSM11D250Z06S075XD11, VSM11D250Z09S075XD11, VSM11D300Z08S100XD11, VSM11D400Z09S150XD11 |
| For Use With | VSM11 Series 0 Degrees /90 Degrees Shoulder Mills |
| Grade, Manufacturer Grade | WN10HM |
| Hole Type | 40 Degrees to 60 Degrees Countersink Hole |
| Included Angle | 75 Degrees |
| Insert Holding Type, Mounting Style | Taper Screw |
| Insert Material, Material - Machining | Carbide |
| Insert Shape, Shape | Parallelogram |
| Insert Size | 110416 |
| Insert Style | XDCT |
| Insert Thickness | 0.1570" |
| ISO Number | XDCT110416PDFRALP |

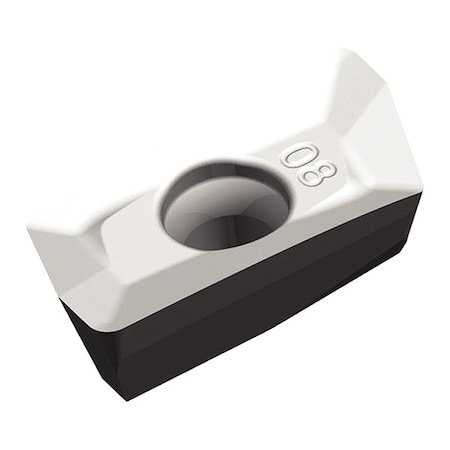

| Item | Parallelogram Milling Insert |
| Lead Angle | 1 Degrees ANSI, 89 Degrees ISO |
| Measurement System | Metric |
| Mounting Hole Dia., Through Hole Inside Dia. | 3.00mm |
| Number of Cutting Edges | 2 |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Magnesium |
| Primary Material Application ISO Code | N |
| Rake | 15.08 Degrees |
| Series | VSM11 |
| Thickness | 0.1570 in |
| Width | 6.89mm |
| Workpiece Compatibility | Nonferrous (N) |
