| Chamfer Angle, Chamfer Width | Not Applicable |
| Coolant Fed | Non-Coolant Through |
| Corner Radius | 3.00mm |
| Country of Origin (subject to change) | Israel |
| Cutting Direction | Right Hand |
| Drilling Tool Configuration | Individual |
| End Mill Application | Drilling, Helical Milling, Plunge Milling, Ramping :, Side Milling/Shoulder Milling: Square End, Slotting: Square End, Trochoidal Milling |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Corner Radius |
| Finish - Machining | AlTiN |
| Flute Type | Helical |
| Helix Angle | 30 Degrees |

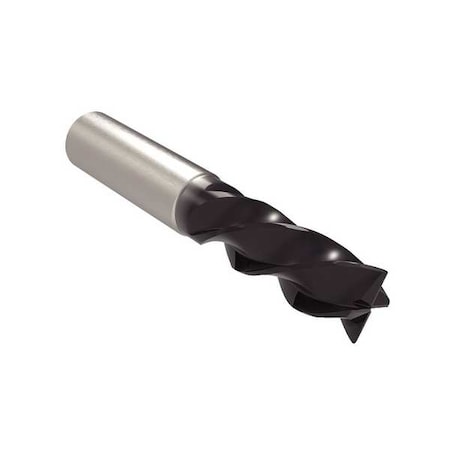

| Item | Corner Radius End Mill |
| Length of Cut | 40.00 mm |
| List Number | 4XNE |
| Material - Machining | Carbide |
| Material Applications, Primary Material Application | Cast Iron, Hardened Materials, High-Temp Alloys, Stainless Steel, Steel |
| Material Grade - Machining | WS15PE |
| Max. Helix Angle | 30 Degrees |
| Measurement System | Metric |
| Milling Dia., Shank Dia. | 20.00 mm |
| Min. Helix Angle | 0 Degrees |
| Neck Dia. | 18.80 mm |
| Neck Length | 0.7402 |
| Number of Coolant Holes | 0 |
| Number of Flutes | 4 |
| Overall Length | 115.00 mm |
| Primary Material Application ISO Code | H, K, M, P, S |
| Series | Varimill Xtreme |
| Shank Type - Machining | Straight |
| Single End/Double End | Single End |
