| Coolant Fed | Non-Coolant Through |
| Country of Origin (subject to change) | Multiple |
| Cutting Direction, Spiral Direction | Right Hand |
| Dimension Type, Measurement System | Metric |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Material, Material - Machining | Carbide |
| End Mill Style | Square |
| Finish - Machining, Grade | Bright (Uncoated) |
| Helix Angle | 30 Degrees |

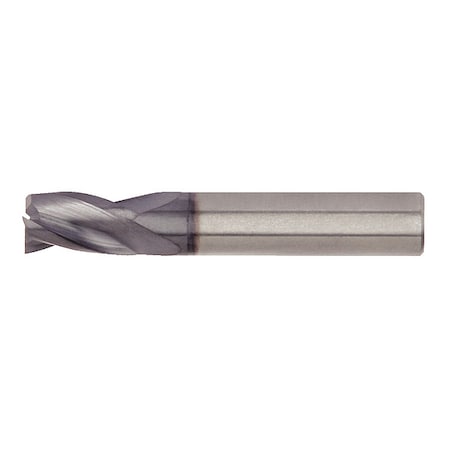

| Item | Square End Mill |
| Length of Cut | 4.00 mm |
| List Number | D003 |
| Material Grade - Machining | TiAlN |
| Milling Dia. | 3.00 mm |
| Milling Diameter | 3.00mm |
| Number of Flutes | 3 |
| Overall Length | 50.00 mm |
| Primary Material Application | All Materials |
| Primary Material Application ISO Code | H, K, M, N, O, P, S |
| Secondary Material Application | Cast Iron, Stainless Steel, Steel |
| Secondary Material Application ISO Code | K, M, P |
| Series | D003/D013 |
| Shank Dia. | 6.00 mm |
| Shank Type - Machining | Weldon Flat |
| Single End/Double End | Single End |
