| Adjustment Mechanism | Knob |
| Adjustment Mechanism Material | Acetal |
| Air Inlet Size, Air Outlet Size | 1/4 in |
| Air Inlet Type, Air Outlet Type, Pressure Gauge Port Type | NPT |
| Body Material, Filter Bowl Guard Material, Lubricator Bowl Guard Material, Lubricator Bowl Material | Aluminum |
| Bowl Size - Air Treatment, Filter Bowl Capacity, Lubricator Bowl Capacity | 0.6 oz |
| Connection Size - Air Treatment, Inlet Size (Combined) | 1/4 in NPT |
| Country of Origin (subject to change) | United States |
| Drain Included, Pressure Gauge Included, Sight Dome Included | Yes |
| Drain Type | Manual |
| Filter Bowl Material | Metal |
| Filter Element Material | Polyethylene |
| Filter Rating | 5 micron |
| For Fluid Type | Oil |
| For Maximum Pipe Run, Max. Pipe Run - Air Treatment | 100 ft |
| For Substance Type | Air |
| Gauge Port Size | 1/8 in NPT |

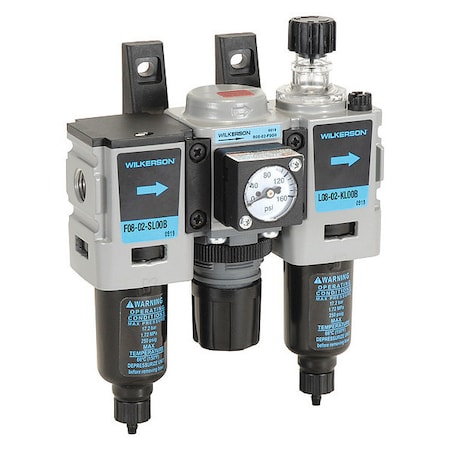

| Item | Filter/Regulator/Lubricator |
| Lubricator Type | Micro Mist |
| Max. Temp., Maximum Operating Temperature | 150 Degrees F |
| Maximum Flow Rate | 27 cfm |
| Maximum Operating Pressure | 250 psi |
| Maximum Regulated Pressure | 125 psig |
| Minimum Operating Temperature | 14 Degrees F |
| Minimum Regulated Pressure | 0 psig |
| Modular Connection | Modular Connection |
| Number of Air Inlets, Number of Air Outlets | 1 |
| Overall Depth | 3 3/16 in |
| Overall Height | 6.25 in |
| Overall Width | 4.75 in |
| Pressure Drop | 14.5 psig |
| Pressure Gauge Port Size | 1/8 in |
| Promotion Restriction | Not eligible for promotion |
| Regulator Type | Relieving |
| Seal Material | Nitrile |
| Sight Gauge Included | No |
| Standards | ISO |
| Weight | 1.96 lb |
