Description:

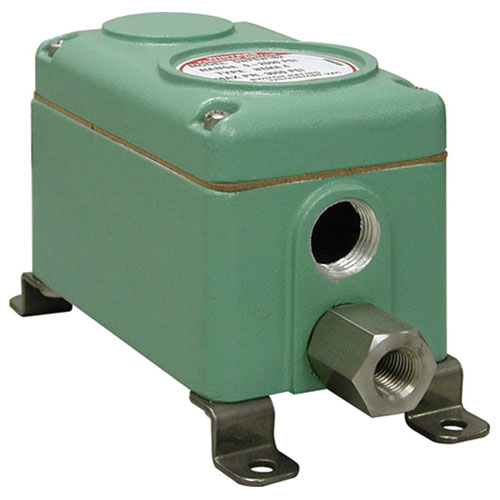

Winters 5WPS Differential Pressure Switch 5WPS5000AFX. ?$50 OFF Orders over $1499 ?. Save Now! ? (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
Attributes
| Key ^ | Value |
|---|---|
| Ambient Temperature | -40?F to 180?F (-40?C to 82?C) |
| Approvals | UL recognized (switch only) |
| Contact Rating | 15 amps @ 125/250/480 Vac |
| Deadband | Fixed (adjustable option available) |
| Electrical Connection | 1/2" NPTF conduit connection |
| Enclosure Rating | NEMA 4X, 12 & 13, hermetically sealed switch option available |
| Housing | Cast aluminum |
| No. of Contacts | One or two SPDT |
| Pressure Connection | 1/4" NPTF |
| Sensitivity | +/-0.5% of range (for one SPDT switch) |
| Set Point Adjustment | Screw type, field adjustable |
| Weight | Approx. 3 lbs |
| Wetted Parts | SS |
