Description:

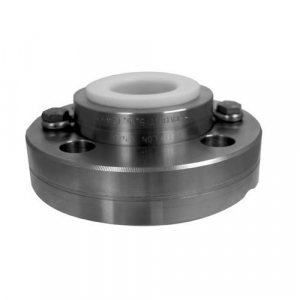

<p><strong>Features </strong> </p> <ul><li>?Continuous use? seals - backing plate will prevent diaphragm from rupturing if pressure sensing instrument fails. </li> <li>Pressure will be held until instrument is replaced </li> <li>ASME B40.100 compliant </li> </ul> <p><strong>Applications </strong> </p> <p>Used in industrial applications such as oil refineries, pulp and paper mills and chemical plants </p>
Attributes
| Key ^ | Value |
|---|---|
| Connection | NPTF gauge connections standard |
| Construction | Two piece construction |
| Diaphragm | PTFE for increased compatibility, sensitivity and versatility |
| Diaphragm Material | PTFE |
| Housing | 316 SS, Monel?, Hastelloy? B & C, titanium, tantalum, PVC, carbon steel, PTFE, Carpenter 20 |
| Instrument Connection | 1/4? NPTF |
| Lower Housing Wetted Parts | 316 SS - PTFElined |
| Maximum Temperature Limit | 400?F (204?C) |
| Type | PTFE Diaphragm |
