Description:

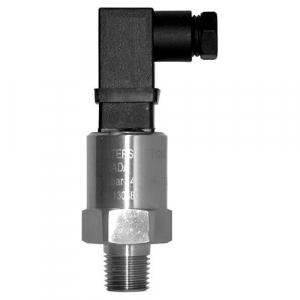

<p><strong>Features: </strong> </p> <ul><li>Developed for OEM applications. </li> <li>Compact stainless steel construction with ceramic sensor </li> <li>Zero and span adjustment option available </li> <li>?0.5% accuracy (?1% for pressures ?45 psi) </li> <li>IP65 and IP67 enclosure ratings </li> <li>CE approved </li> </ul> <p><strong>Applications: </strong> </p> <ul><li>Suitable for a variety of applications including pump and compressor monitoring, refrigeration and HVAC </li> </ul> <p> <img src="//usmegastore.com/assets_images/depiction/winters-instruments/LE100301_1.jpg" style="width:40%" /> </p>
Attributes
| Key ^ | Value |
|---|---|
| Accuracy | ?0.5% FSO (?1% FSO for pressures ? 45 psi (3 bar)) |
| Approval | CE |
| Burst Pressure | 600 psi |
| Current Consumption | 3-wire voltage: 5 mA (short-circuit current 20 mA) |
| EMC | EMI: EN50081-1/-2; EMS: EN50082-2 |
| Insulation | >100 M? at 50V |
| Operation Life | 2 M cycles |
| Output Signal | 3-wire: 0.5-4.5 Vdc / Vs = 10-30 Vdc / Vac |
| Over-pressure | 300 psi |
| Permissible Temperatures | Operating: -40?F to 212?F (-40?C to 100?C) (185?F (85?C) maximum zero span); Compensating: 14?F to 176?F (-10?C to 80?C) (158?F (70?C) maximum zero span) |
| Pressure Port / Housing | 304 SS |
| Range | 0/200 psi |
| Response Time | <10 ms |
| Stability | Vibration: 10 g / 5 Hz to 200 Hz; Shock: 20 g / 11 ms |
| Wetted Parts | Seals: NBR; Diaphragm: Ceramic |
