Winters PFP1063ZRR1
Winterszoom
brand:
manufacturer:
Description:

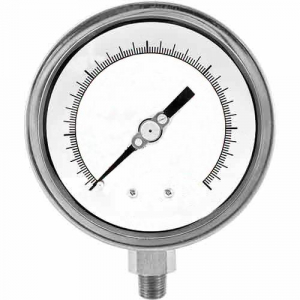

<p><strong>Winters, PFP1063ZRR1, PFP-ZR Premium Stainless Steel Gauge with Single Scale, 0/160 psi </strong> </p> <p><strong>Features: </strong> </p> <ul><li>StabiliZR dampened movement minimizes effects of pulsation and vibration without liquid filling </li> <li>Restrictor screw standard on dual scale (optional on single scale) </li> <li>Stainless steel case </li> <li>Under and overload stops </li> <li>316 SS wetted parts </li> <li>ASME B40.100 compliant (EN837-1 available) </li> <li>RoHS compliant </li> <li>CRN registered </li> </ul> <p><strong>Applications: </strong> </p> <ul><li>Ideally suited for process, chemical and petroleum industry </li> <li>Where chemical compatibility and contamination is a concern </li> </ul>

Attributes

Key ^Value
Ambient Temperature, Process Temperature-40?F to 250?F (-40?C to 120?C)
Bourdon Tube, Socket316L SS
CaseAISI 304 SS (dry)
Connection1/4" Bottom
Dial6" (150 mm) white aluminum
Enclosure RatingNEMA 4X/IP66, EN60529-1 (IEC529-1)
LensPolycarbonate
Lens Ring GasketBuna N
RingAISI 304 SS bayonet
Scale Range0/160 psi
WeldingLaser welded socket to case
Working PressureMaximum 75% of full scale value
