Description:

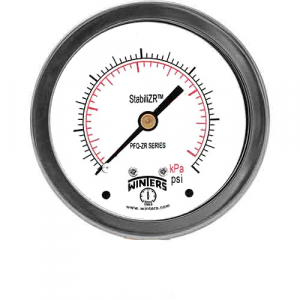

<p><strong>Winters, PFQ732ZRR1, PFQ-ZR Stainless Steel Gauge, Single Scale, Dial 4", 1/4" Back, 30"/0/30 psi </strong> </p> <p>Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments. Use where harmful vibration and pulsation are present. </p> <p><strong>Features: </strong> </p> <ul><li>Dampened movement minimizes effects of pulsation and vibration as effectively as liquid filled gauges </li> <li>Crimp-on bezel </li> <li>Brass internals </li> <li>CRN registered </li> </ul>
Attributes
| Key ^ | Value |
|---|---|
| Accuracy | +/-1.5% of full scale value |
| Ambient / Process Temperature | -40degF to 200degF (-40degC to 93degC) |
| Bourdon Tube | Bronze |
| Case | 304 SS (dry) |
| Connection | 1/4" NPT |
| Dial | 4" (100mm) |
| Enclosure Rating | IP65 |
| Fill Plug | Buna N |
| Lens | Polycarbonate |
| Lens Ring Gasket | Silicone rubber |
| Movement | Brass with StabiliZR dampened movement (silicone in sealed chamber) |
| Over-pressure Limit | 25% |
| Pointer | Anodized black aluminum |
| Pressure Range | 30"/0/30 psi |
| Ring | 304 SS (crimped on) |
| Socket Gasket | Buna N for two-piece internal socket seal |
| Working Pressure | 75% of full scale value |
