mpn:
brand:
manufacturer:
MPN:
Description:

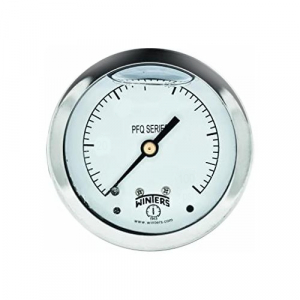

<p><strong>Winters, PFQ905ZRR1, StabiliZR Stainless Steel Gauge, 2.5", 0/160 psi, 1/4" Back </strong> </p> <p><strong>Features: </strong> </p> <ul><li>StabiliZR dampened movement minimizes effectsof pulsation and vibration as effectively as liquid filledGauge </li> <li>Restricted orifice standard on dual scale </li> <li>Crimp-on bezel </li> <li>Brass internals </li> <li>Single Scale (psi) </li> <li>U-Clamps and front flanges for panel mounting </li> <li>ASME B40.100 compliant </li> <li>CRN registered </li> </ul> <p><strong>Applications: </strong> </p> <ul><li>I Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments </li> <li>Use where harmful vibration and pulsation are present </li> </ul>
Attributes
| Key ^ | Value |
|---|---|
| Accuracy | +/-1.5% of full scale value |
| Bourdon Tube | AISI 316 SS C or coil shaped |
| Case | AISI 304 SS |
| Connection | 1/4" NPT |
| Dial | 2.5" |
| Enclosure Rating | IP65 |
| Fill Liquid | Glycerin |
| Fill Plug | Buna N |
| Lens | Polycarbonate |
| Lens Ring Gasket | Silicone rubber |
| Movement | SS |
| Over-pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa) |
| Pointer | Aluminum, anodized black |
| Ring | AISI 304 SS, Crimp-On |
| Socket | AISI 316 SS with restrictor screw |
| Socket Gasket | Buna N for two-piece internal socket seal |
| Welding | TIG |
| Working Pressure | Maximum 75% of full scale value |
